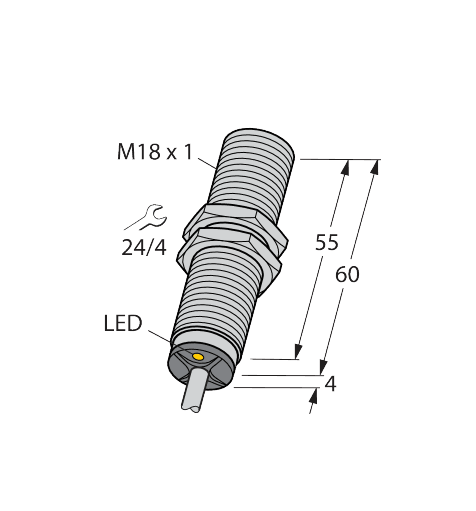

BI5U-M18M-VP4X | TURCK - Your Global Automation Partner
Inductive Sensor
BI5U-M18M-VP4X
Order ID no. 1581201
home
Home
Loading...
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-30
Base unit
PCE
Cable color
Gray
Cable length (m)
2
Design
Threaded barrel
Dimension unit
MMT
EAN/UPC code
4047101125085
Electrical connection
Cable
Gross weight
140
Height
20
Housing diameter (mm)
⌀ 18 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Length
150
Mounting conditions
Flush
Net weight
140
Operating voltage
DC
Output function
PNP
Protection class
IP68
Quality active face
PBT
Rated switching distance (mm)
5
Special features
Factor 1, Resistant to magnetic fields, uprox+
Switching element function
Complementary contact
Switching frequency (kHz)
1.5
Volume
450
Volume unit
CMQ
Weight unit
GRM
Width
150
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
5
home
Turck-Shop
Sensors
Inductive Sensors
BI5U-M18M-VP4X
In Stock
List Price
A$309.86
Item Total
A$309.86
