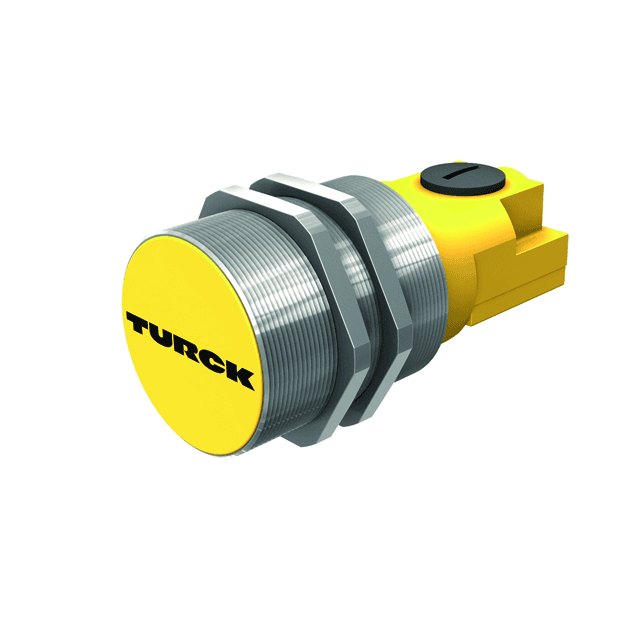

Inductive Sensor
BI25-G47SR-VP4X2
Order ID no. 15648
In Stock
List Price
A$760.56
Item Total
A$760.56
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
home
Home
Loading...
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Design
Threaded barrel
Dimension unit
MMT
EAN/UPC code
4047101074970
Electrical connection
Terminal chamber
Gross weight
287
Height
60
Housing diameter (mm)
⌀ 47 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Length
150
Mounting conditions
Flush
Net weight
287
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
25
Switching element function
Complementary contact
Switching frequency (kHz)
0.1
Volume
810
Volume unit
CMQ
Weight unit
GRM
Width
90
Key Features
Electrical connection
Terminal chamber
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
25
