BI30R-Q20-AP6X2-H1141 | TURCK - Your Global Automation Partner
Inductive Sensor Ring sensor
BI30R-Q20-AP6X2-H1141
Order ID no. 1407500
home
Home
Loading...
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Connector type
M12 x 1
Design
Ring sensor

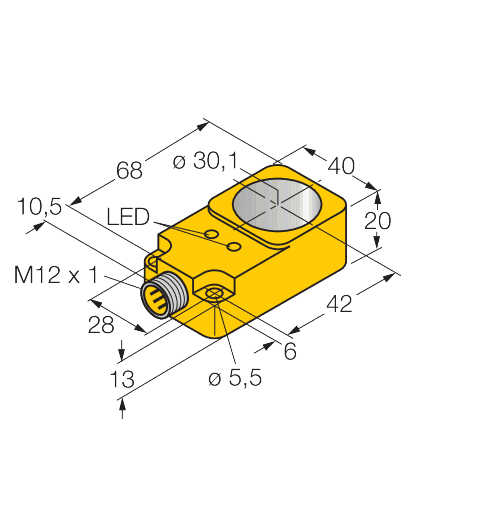

Dimensions
68 mm x 40 mm x 20 mm
Dimension unit
MMT
EAN/UPC code
4047101000481
Electrical connection
Connector
Gross weight
68
Height
30
Housing material
Plastic
Housing quality
PBT-GF30-V0
Inside ring diameter D (mm)
30.1
Length
70
Net weight
68
Operating voltage
DC
Output function
PNP
Protection class
IP65
Special features
Ring sensor, static output
Switching element function
normally open NO
Switching frequency (kHz)
0.008
Volume
84
Volume unit
CMQ
Weight unit
GRM
Width
40
home
Turck-Shop
Sensors
Inductive Sensors
BI30R-Q20-AP6X2-H1141
Key Features
Electrical connection
Connector
Inside ring diameter D (mm)
30.1
Output function
PNP
In Stock
List Price
A$632.64
Item Total
A$632.64
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
