Inductive Sensor With Increased Temperature Range

NI35-CP40-Y1X/S100

Order ID no. 1011125

Ambient temperature max. (°C): 100
Ambient temperature min. (°C): -25
Approvals: ATEX II 1 D, ATEX II 2 D, ATEX II 2 G, ATEX II 3 D, ATEX II 3 G, PL c, SIL 2
Base unit: PCE
Design: Rectangular

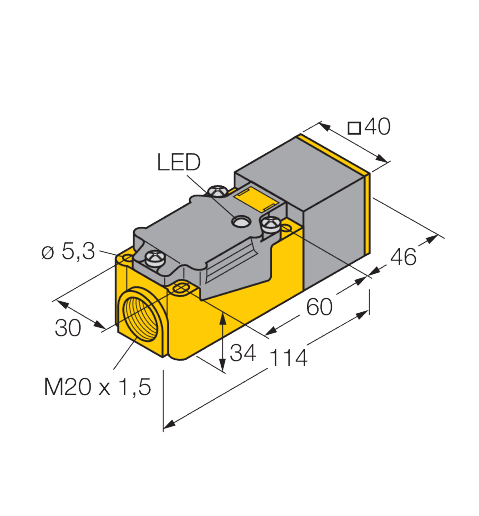

Dimensions: 114 mm x 40 mm x 40 mm
Dimension unit: MMT
EAN/UPC code: 4047101199642
Electrical connection: Terminal chamber
Gross weight: 236
Height: 40
Housing material: Plastic
Housing quality: PBT-GF30-V0
Housing surface: Black
Length: 115
Mounting conditions: Non-flush
Net weight: 236
Operating voltage: DC
Output function: NAMUR
Protection class: IP67
Quality active face: PBT-GF30-V0
Rated switching distance (mm): 35
Switching frequency (kHz): 0.08
Volume: 1840
Volume unit: CMQ
Weight unit: GRM
Width: 400

In Stock
List Price	A$550.26
