B1NF360V-QR20-IOLX3-H1141

B1NF360V-QR20-IOLX3-H1141

Thumbnail for B1NF360V-QR20-IOLX3-H1141

Thumbnail for B1NF360V-QR20-IOLX3-H1141

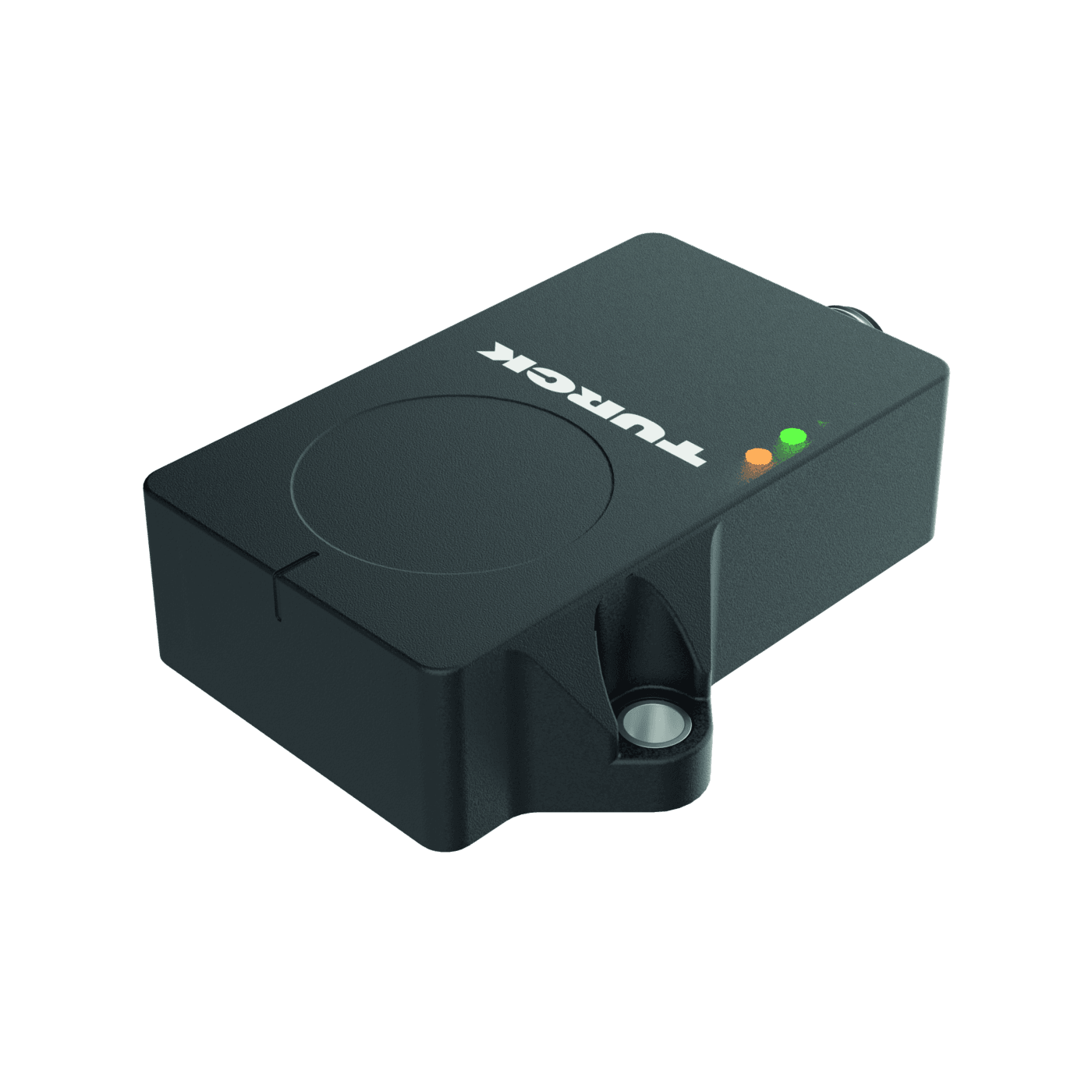

Dynamic Inclinometer IO-Link

B1NF360V-QR20-IOLX3-H1141

Order ID no. 100020900

homeHome
Loading...

Ambient temperature max. (°C): 85
Ambient temperature min. (°C): -40
Base unit: PCE
Communication protocol: IO-Link
Connector type: M12 x 1
Design: Rectangular

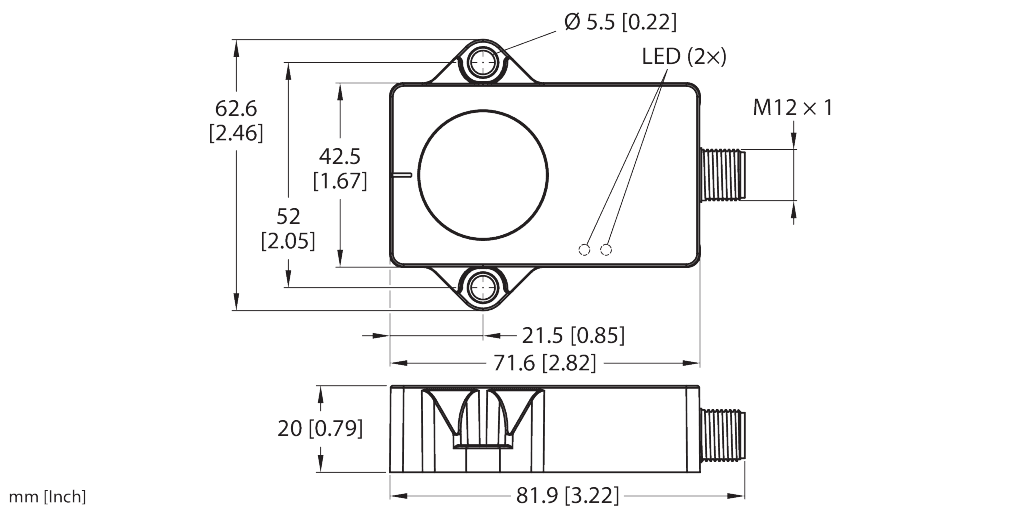

Dimensions: 71,6 mm x 62,6 mm x 20 mm
Dimension unit: MMT
EAN/UPC code: 4047101527650
Electrical connection: Connector
Gross weight: 89
Height: 20
Housing material: Plastic
Housing quality: Ultem
Length: 70
Measuring principle: Combination of gyroscopes and accelerometers
Net weight: 89
Number of measuring axes: 1
Protection class: IP68, IP69K
Volume: 0.056
Volume unit: DMQ
Weight unit: GRM
Width: 40

homeTurck-Shop
Sensors
Inclinometers
B1NF360V-QR20-IOLX3-H1141

Key Features

Communication protocol: IO-Link
Number of measuring axes: 1

In Stock
List Price	A$1,248.21

Item TotalA$1,248.21

Quantity
