REI-12H10E-4B4096-H1181 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

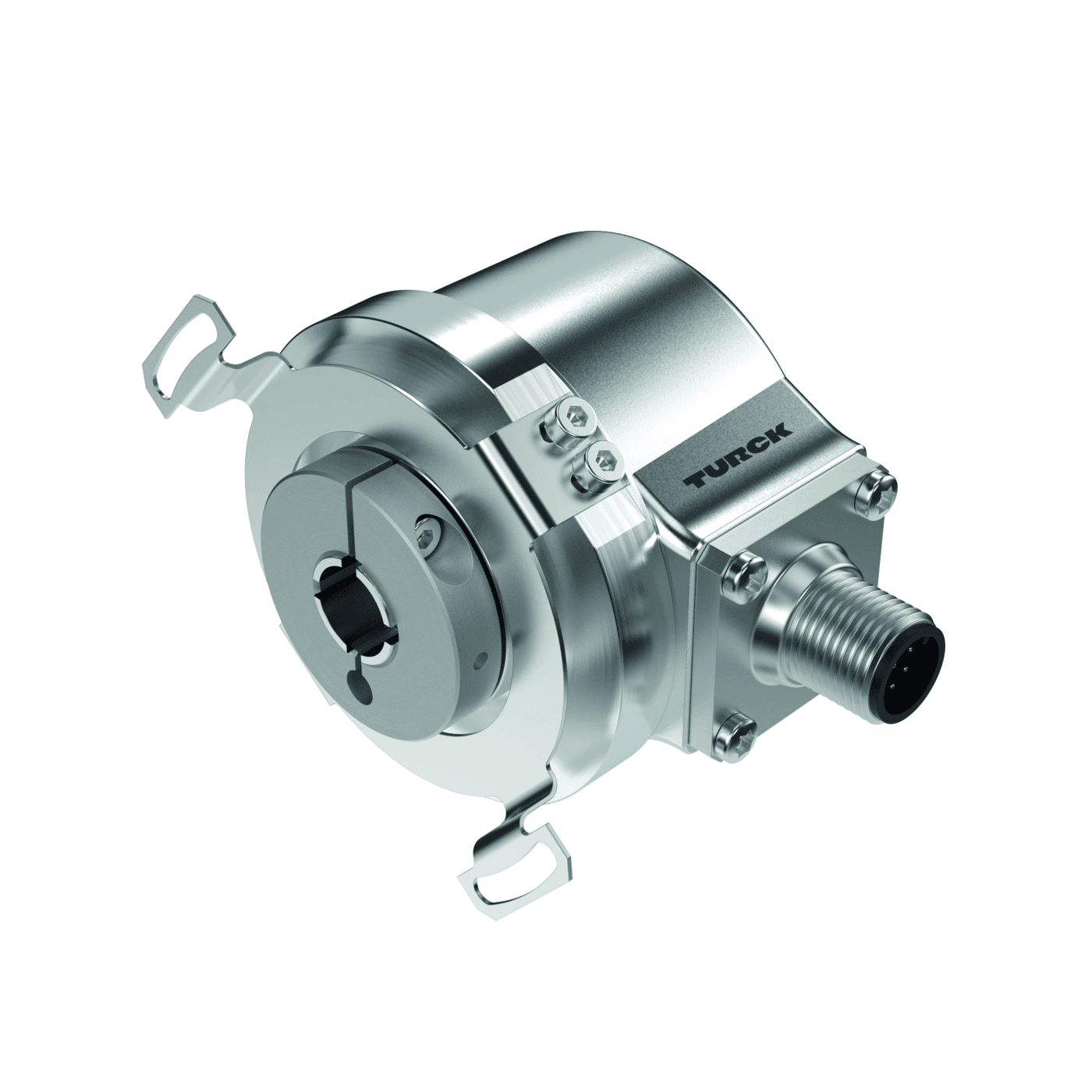

Incremental Encoder
REI-12H10E-4B4096-H1181
Order ID no. 100010517
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Design
Hollow shaft
Dimension unit
MMT
EAN/UPC code
4047101550603
Electrical connection
Connector
Encoder line
Industrial-Line
Flange diameter (mm)
63
Flange type
Flange with stator coupling
Gross weight
400
Height
0
Housing material
Die-cast zinc
Length
0
Measuring principle
Optical
Net weight
400
Output function
RS422/TTL
Output type
Incremental
Protection class
IP67
Protection class shaft
IP67
Resolution incremental (ppr)
4096
Shaft diameter D (mm)
10 mm
Shaft Type
Hollow shaft
Special features
Standard
Technology
Optical
Volume
0
Weight unit
GRM
Width
0
home
Turck-Shop
Sensors
Encoders
REI-12H10E-4B4096-H1181
Key Features
Output type
Incremental
Flange diameter (mm)
63
Shaft diameter D (mm)
10 mm
Shaft Type
Hollow shaft
Item Total
A$1,041.00
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
In Stock
List Price
A$1,041.00
