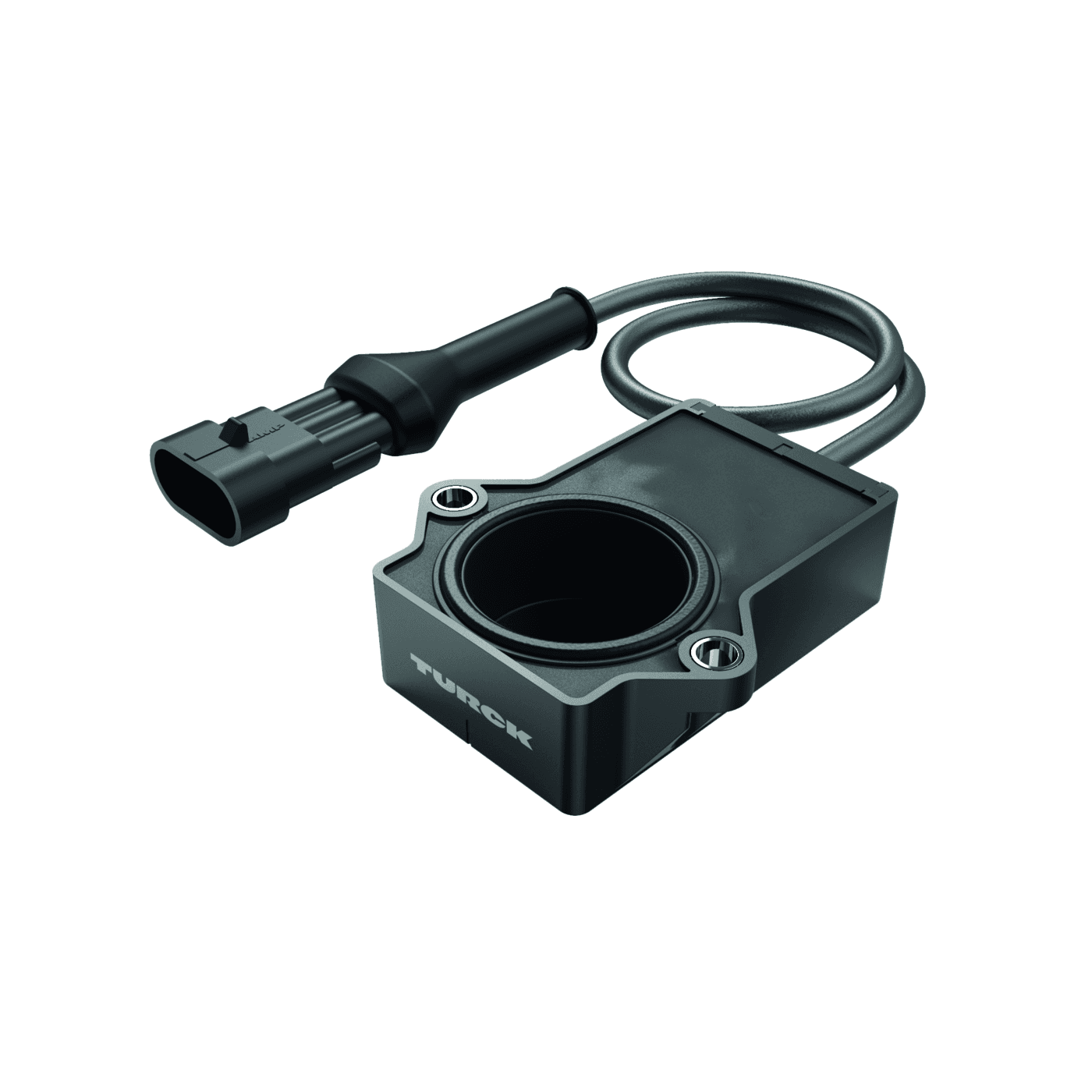

Miniature Encoder With Analog Output
RI60P1-QR20-LU4X2-0.24-AMP01-3P
Order ID no. 100000197
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
85
Ambient temperature min. (°C)
-40
Base unit
PCE
Cable length (m)
0.24
Connector type
AMP Superseal
Design
Rectangular
Dimensions
71,6 mm x 62,6 mm x 20 mm
Dimension unit
MMT
EAN/UPC code
4047101435443
Electrical connection
Cable with connector
Encoder line
Premium-Line
Flange type
Flange without mounting element
Gross weight
121
Height
20
Housing material
Plastic
Housing quality
Ultem
Length
130
Measuring principle
Inductive
Net weight
121
Operating voltage
DC
Output function
Analog output
Output type
Absolute singleturn
Protection class
IP68, IP69K
Resolution
0.09°
Shaft diameter D (mm)
6 mm, 6.35 mm
Shaft Type
Blind hole shaft
Technology
Contactless
Volume
104
Volume unit
CMQ
Weight unit
GRM
Width
40
