Capacitive sensor

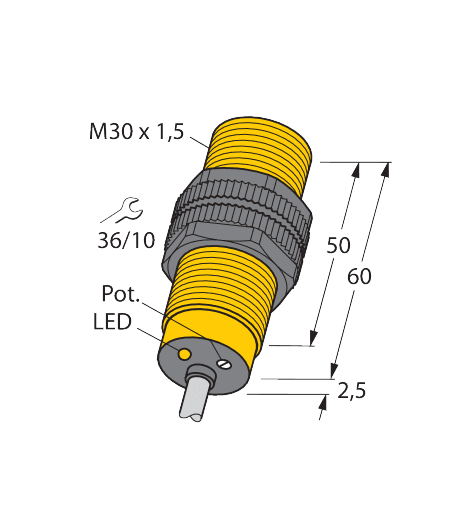

BC10-S30-VN4X
Order ID no. 2506000
In Stock
List Price
A$558.26
Item Total
A$558.26
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Capacitive Sensors
BC10-S30-VN4X
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
UL
Base unit
PCE
Cable length (m)
2
Design
Threaded barrel
Dimensions
62,5 mm
Dimension unit
MMT
EAN/UPC code
4047101089561
Electrical connection
Cable
Gross weight
144
Height
30
Housing diameter (mm)
⌀ 30 mm
Housing material
Plastic
Housing quality
PA12-GF30, PEI
Length
180
Measuring principle
Capacitive
Mounting conditions
Flush
Net weight
144
Operating voltage
DC
Output function
NPN
Protection class
IP67
Quality active face
PA12-GF30
Rated switching distance (mm)
15
Switching element function
Complementary contact
Switching frequency (kHz)
0.1
Volume
702
Volume unit
CMQ
Weight unit
GRM
Width
130
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
NPN
Rated switching distance (mm)
15
