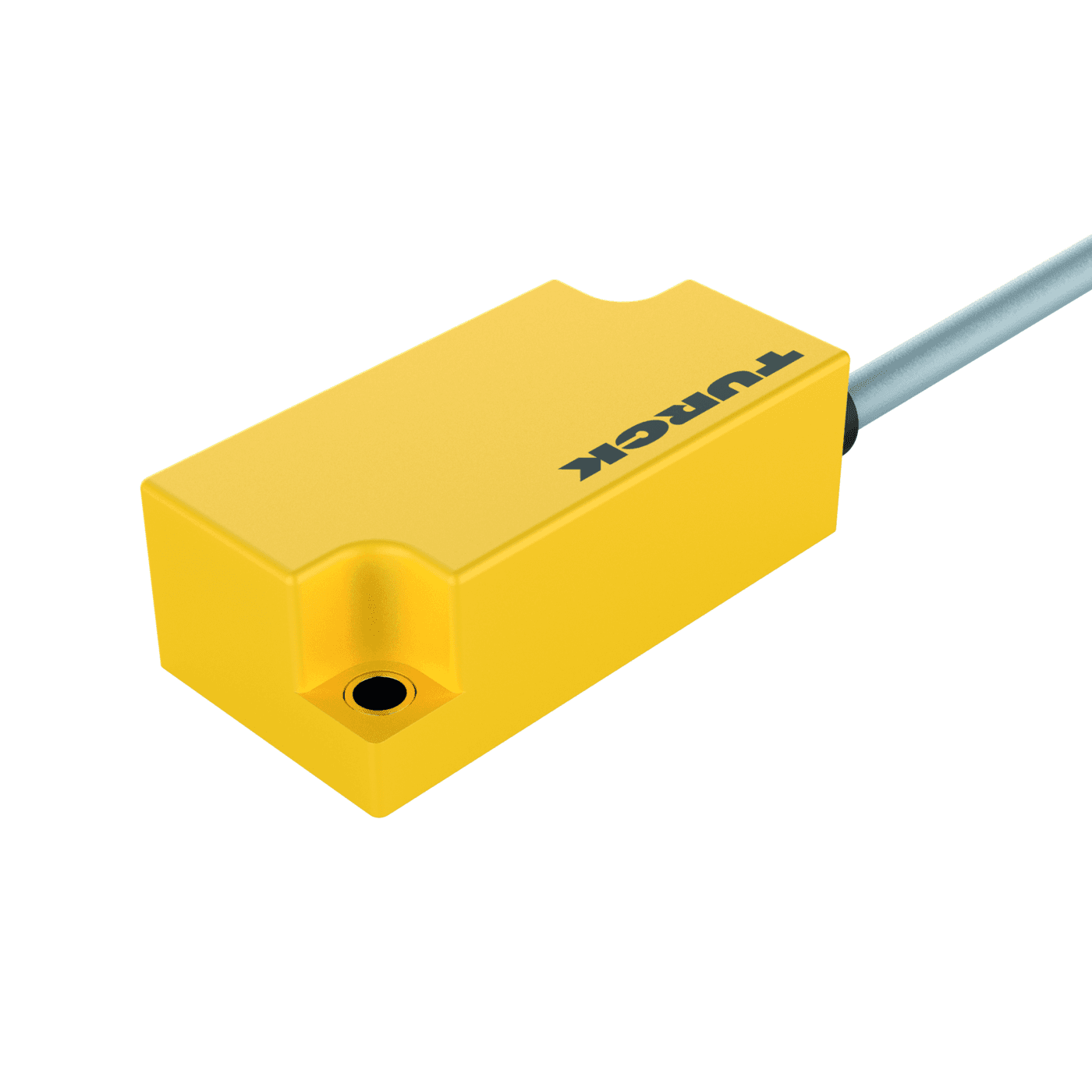

Capacitive sensor
BCF10-Q20L60-AP4X
Order ID no. 2504028
In Stock
home
Turck-Shop
Sensors
Capacitive Sensors
BCF10-Q20L60-AP4X
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Base unit
PCE
Design
Rectangular
Dimension unit
MMT
EAN/UPC code
4047101202311
Electrical connection
Cable
Function
For highly viscous media
Gross weight
134
Height
10
Length
100
Measuring principle
Capacitive
Mounting conditions
Flush
Net weight
134
Operating voltage
DC
Output function
PNP
Protection class
IP67
Rated switching distance (mm)
10
Switching element function
normally open NO
Switching frequency (kHz)
0.1
Volume
100
Volume unit
CMQ
Weight unit
GRM
Width
100
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
10
List Price
A$693.94
Item Total
A$693.94
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
