Capacitive sensor

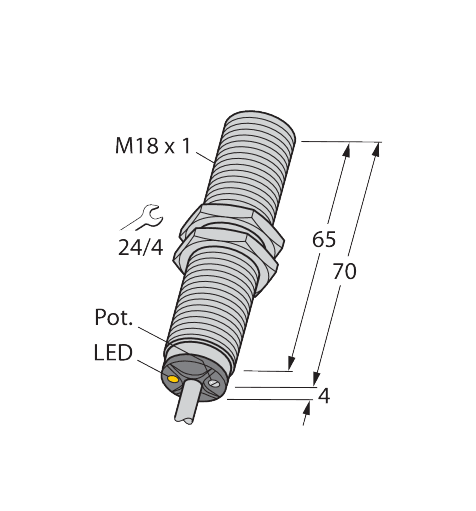

BC5-M18-RP4X
Order ID no. 2504026
In Stock
List Price
A$561.15
Item Total
A$561.15
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Sensors
Capacitive Sensors
BC5-M18-RP4X
Technical Data
Downloads
CAD
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Approvals
UL
Base unit
PCE
Cable length (m)
2
Design
Threaded barrel
Dimensions
74 mm
Dimension unit
MMT
EAN/UPC code
4047101202298
Electrical connection
Cable
Gross weight
142
Height
10
Housing diameter (mm)
⌀ 18 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Length
100
Measuring principle
Capacitive
Mounting conditions
Flush
Net weight
142
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PBT-GF30-V0
Rated switching distance (mm)
5
Switching element function
NC contact
Switching frequency (kHz)
0.1
Volume
100
Volume unit
CMQ
Weight unit
GRM
Width
100
Key Features
Electrical connection
Cable
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
5
