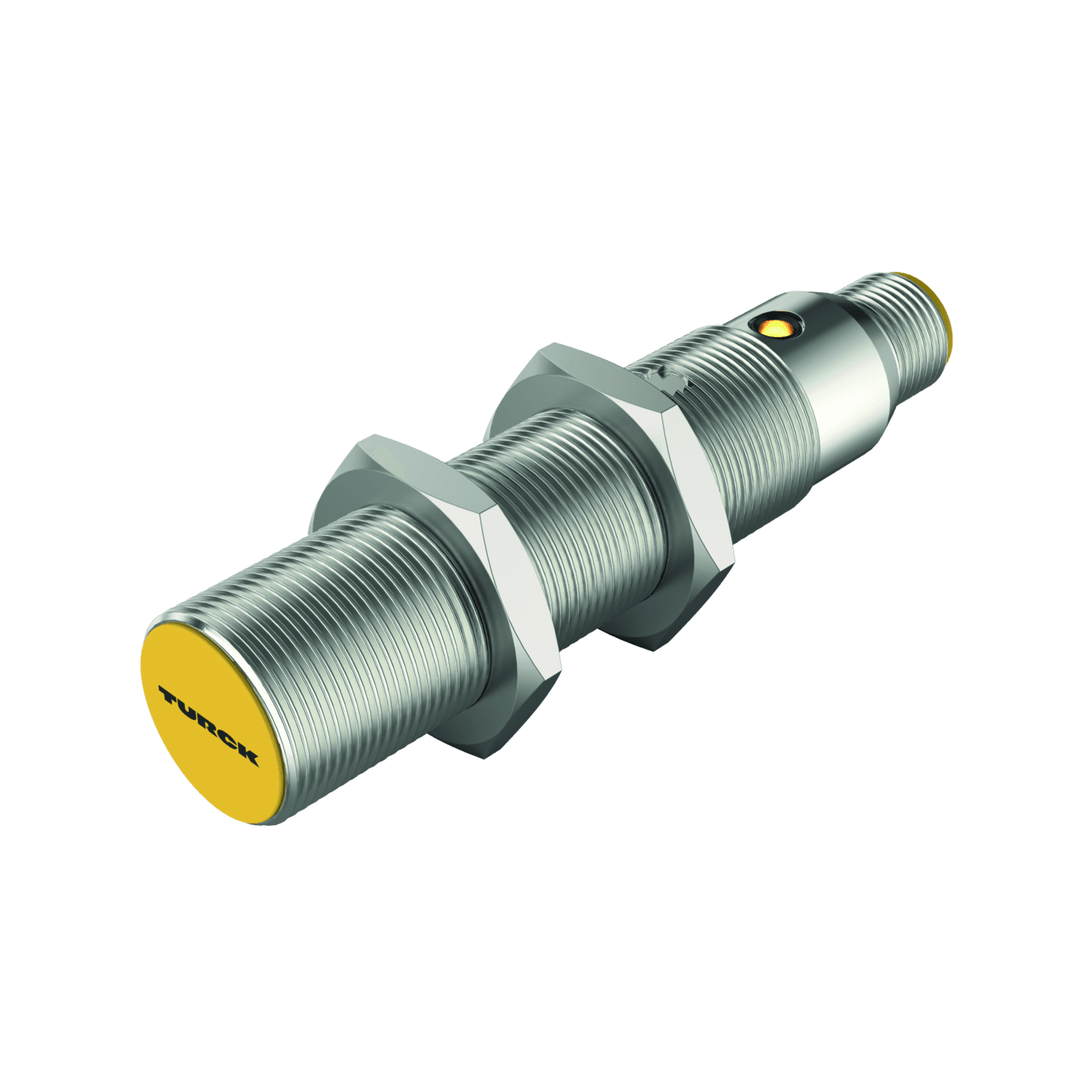

Capacitive sensor
BC5-M18-AP4X-H1141/S250
Order ID no. 2504024
In Stock
home
Turck-Shop
Sensors
Capacitive Sensors
BC5-M18-AP4X-H1141/S250
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Approvals
UL
Base unit
PCE
Connector type
M12 x 1
Design
Threaded barrel
Dimensions
83 mm
Dimension unit
MMT
EAN/UPC code
4047101202274
Electrical connection
Connector
Gross weight
76
Height
15
Housing diameter (mm)
⌀ 18 mm
Housing material
Metal
Housing quality
CuZn
Housing surface
Chrome-plated
Length
80
Measuring principle
Capacitive
Mounting conditions
Flush
Net weight
76
Operating voltage
DC
Output function
PNP
Protection class
IP67
Quality active face
PBT-GF30-V0
Rated switching distance (mm)
5
Switching element function
normally open NO
Switching frequency (kHz)
0.1
Volume
18
Volume unit
CMQ
Weight unit
GRM
Width
15
Key Features
Electrical connection
Connector
Mounting conditions
Flush
Output function
PNP
Rated switching distance (mm)
5
List Price
A$554.28
Item Total
A$554.28
