- Ambient temperature max. (°C)
- 80
- Ambient temperature min. (°C)
- -40
- Approvals
- cULus
- Base unit
- PCE
- Communication protocol
- IO-Link
- Connector type
- M12 x 1
- Design
- Without display (integrated probe)
- Detection type
- medium contact
- Dimension unit
- MMT
- EAN/UPC code
- 4047101418071
- Electrical output
- Current output (2-wire), Switching output
- Electrical connection
- Connector
- Gross weight
- 41
- Height
- 10
- Housing material
- Stainless-steel/Plastic
- Housing quality
- 1.4404 (AISI 316L)

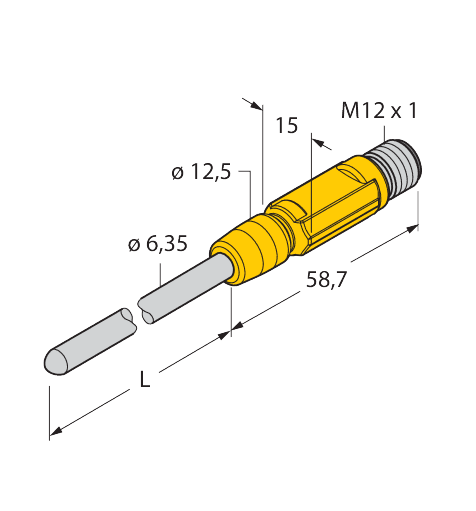

- Immersion depth L (mm)
- 150
- Length
- 200
- Measuring range
- -50...500 °C
- Mounting conditions
- Immersion sensor
- Net weight
- 41
- Operating voltage
- DC
- Output function
- PNP/NPN
- Power supply connectivity
- M12
- Process connection
- For compression fittings, thermowell or direct mounting
- Protection class
- IP67
- Switching element function
- NO/NC programmable
- Volume
- 40
- Volume unit
- CMQ
- Weight unit
- GRM
- Width
- 20
