Module Rack for the DPC System FOUNDATION Fieldbus

DPC-49-4RMB/SY

Order ID no. 6882025

Ambient temperature max. (°C): 60
Ambient temperature min. (°C): -20
Application: Data
Base unit: PCE
Connection technology signal: Screw terminal
Device type: Module Racks

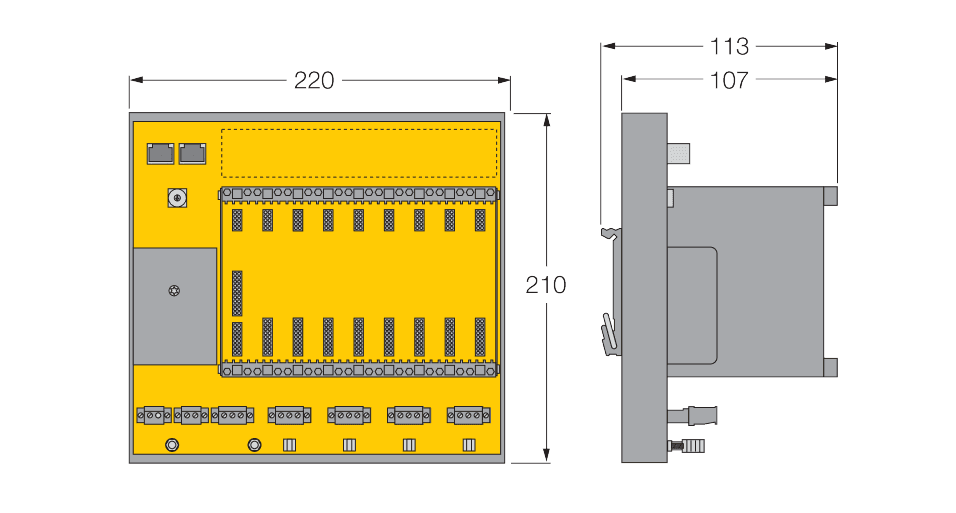

Dimensions: 210 mm x 220 mm x 113 mm
Dimension unit: MMT
EAN/UPC code: 4047101207743
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Gross weight: 1556
Height: 125
Housing material: Aluminium
Installation area: non-Ex
Length: 275
Net weight: 1556
Network protocol: FOUNDATION fieldbus
Number of channels: 4
Protection class: IP20
Volume: 9453.125
Volume unit: CMQ
Weight unit: GRM
Width: 275

In Stock
List Price	A$3,886.04
