Magnetic Field Sensor Compact design for small hydraulic cylinders

BIM-UNTK-AP6X-0.3-PSG3M

Order ID no. 4686015

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -25
Base unit: PCE
Cable color: Gray
Cable length (m): 0.3
Connector type: M8 x 1
Cylindrical design: Dovetail cylinder, grooved, Round cylinder, T-groove cylinder, Tie-rod cylinder
Design: Rectangular

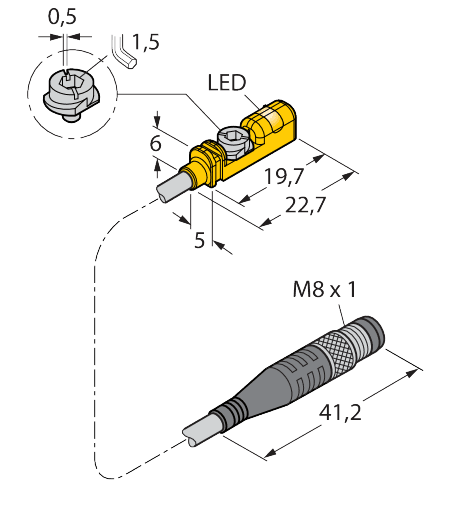

Dimensions: 19,7 mm x 5 mm x 6 mm
Dimension unit: MMT
EAN/UPC code: 4047101283945
Electrical connection: Cable with connector
Gross weight: 13
Height: 20
Housing material: Plastic
Housing quality: PP
Length: 140
Net weight: 13
Operating voltage: DC
Output function: PNP
Protection class: IP68
Quality active face: PP
Switching element function: normally open NO
Switching frequency (kHz): 0.02
Volume: 364
Volume unit: CMQ
Weight unit: GRM
Width: 130

In Stock
List Price	A$207.00
