M18-3VPDL-2M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

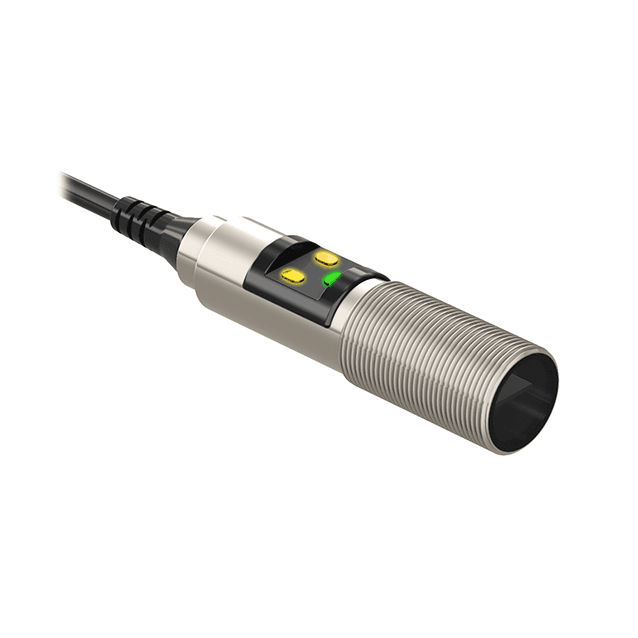

Photoelectric sensor Diffuse-Mode Sensor
M18-3VPDL-2M
Order ID no. 3088318
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Cable length (m)
2
Construction size
⌀ 18 mm
Design
Tube

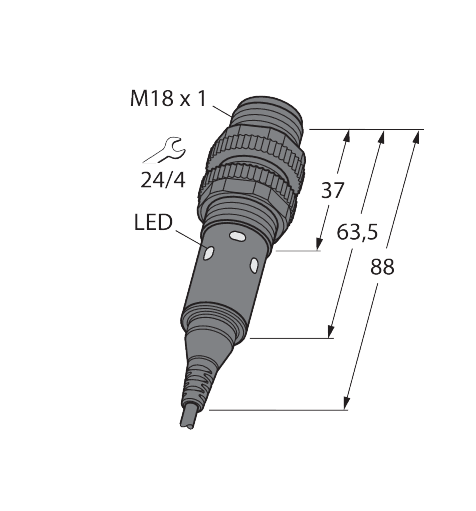

Dimensions
88 mm
Dimension unit
MMT
EAN/UPC code
662488883188
Electrical connection
Cable
Function
Proximity switch
Gross weight
63.5
Height
20
Housing material
Metal
Housing quality
Nickel-plated brass
Length
90
Light type
Red
Max. range (mm)
750
Net weight
63.5
Operating mode
Diffuse
Output function
PNP
Protection class
IP67, IP69
Setting option
Potentiometer
Special features
Wash down
Switching element function
Complementary contact
Volume
162
Volume unit
CMQ
Wavelength (nm)
624
Weight unit
GRM
Width
90
home
Turck-Shop
Others
M18-3VPDL-2M
In Stock
List Price
A$186.84
Item Total
A$186.84
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
