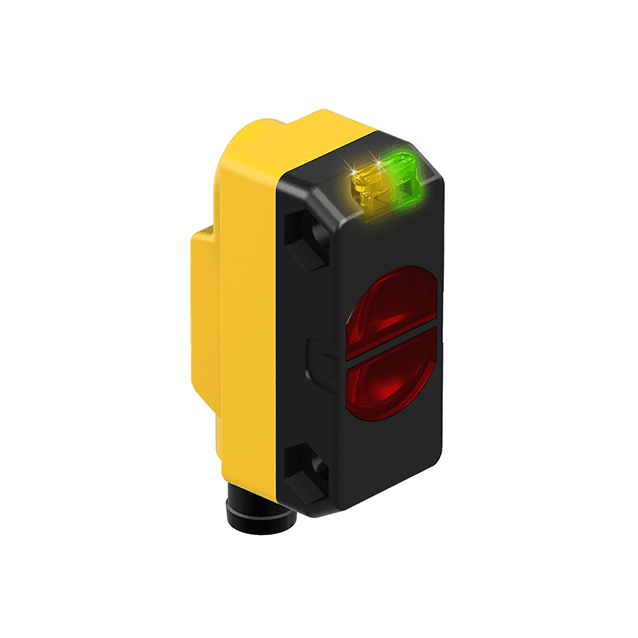

Photoelectric sensor Diffuse-Mode Sensor
QS18VN6WQ7
Order ID no. 3066441
In Stock
List Price
A$222.77
Item Total
A$222.77
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Others
QS18VN6WQ7
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-20
Base unit
PCE
Connector type
M8 x 1
Design
Rectangular

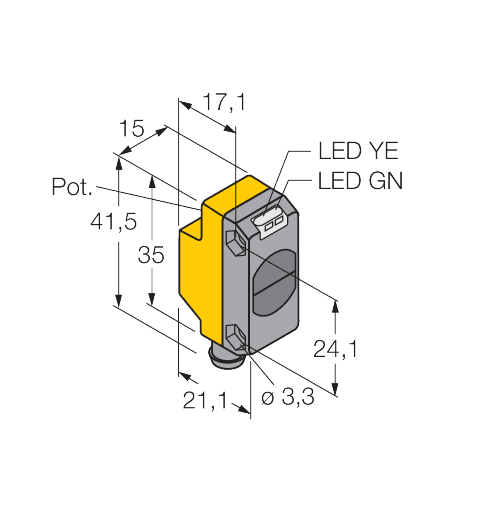

Dimensions
21,1 mm x 15 mm x 41,5 mm
Dimension unit
MMT
EAN/UPC code
662488664411
Electrical connection
Connector
Function
Proximity switch
Gross weight
45
Height
0
Housing material
Plastic
Housing quality
ABS
Length
0
Light type
IR
Max. range (mm)
100
Net weight
45
Operating mode
Divergent
Output function
NPN
Protection class
IP67
Switching element function
NO/NC
Volume
0
Wavelength (nm)
940
Weight unit
GRM
Width
0
