Photoelectric sensor Diffuse-Mode Sensor
SMU315DQDP
Order ID no. 3059144
In Stock
List Price
A$429.64
home
Turck-Shop
Others
SMU315DQDP
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.15
Connector type
1/2″
Construction size
⌀ 18 mm
Design
Rectangular with thread

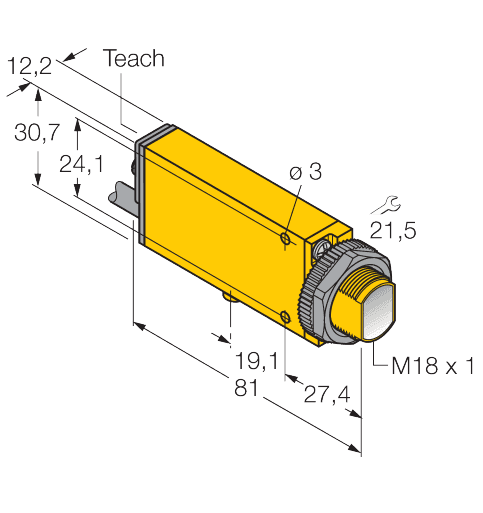

Dimensions
81 mm x 12,3 mm x 30,7 mm
Dimension unit
MMT
EAN/UPC code
662488591441
Electrical connection
Cable with connector
Function
Proximity switch
Gross weight
117
Height
0
Housing material
Plastic
Housing quality
Thermoplastic material
Housing surface
Yellow
Length
0
Light type
IR
Max. range (mm)
380
Net weight
117
Operating mode
Diffuse
Output function
Relay output
Protection class
IP67
Setting option
Potentiometer
Switching element function
NO/NC
Volume
0
Wavelength (nm)
880
Weight unit
GRM
Width
0
