S18AW3FF100Q3 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

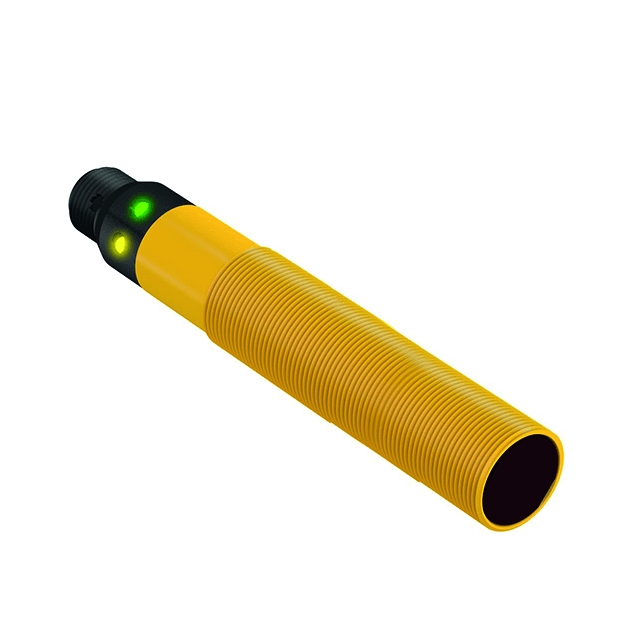

Photoelectric sensor Diffuse-Mode Sensor with Fixed Background Suppression
S18AW3FF100Q3
Order ID no. 3036878
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 18 mm
Design
Tube

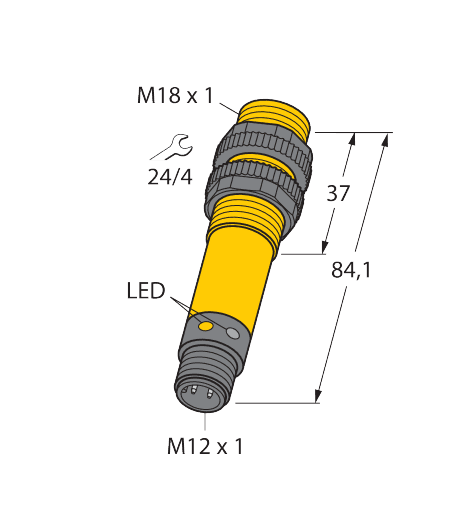

Dimensions
86,1 mm
Dimension unit
MMT
EAN/UPC code
662488368784
Electrical connection
Connector
Function
Proximity switch
Gross weight
63
Height
30
Housing material
Plastic
Housing quality
Thermoplastic material
Length
145
Light type
IR
Max. range (mm)
100
Net weight
63
Operating mode
Background suppression, non-adjustable
Output function
Relay output
Protection class
IP67, IP69
Special features
Encapsulated, Wash down
Switching element function
normally open NO
Volume
391.5
Volume unit
CMQ
Wavelength (nm)
880
Weight unit
GRM
Width
90
