Photoelectric sensor Photoelectric sensor for plastic fibers
Q45BW22FP
Order ID no. 3036844
In Stock
List Price
A$469.51
Item Total
A$469.51
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Others
Q45BW22FP
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-40
Base unit
PCE
Cable length (m)
2
Design
Rectangular

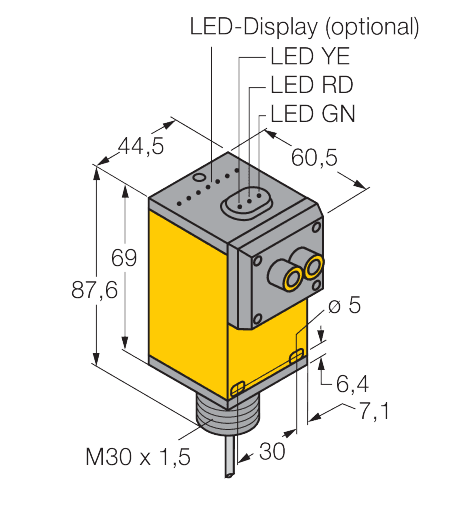

Dimensions
60,5 mm x 44,5 mm x 87,6 mm
Dimension unit
MMT
EAN/UPC code
662488368449
Electrical connection
Cable
Function
Fiber-optic sensor for plastic optical fiber
Gross weight
336
Height
0
Housing material
Plastic
Housing quality
Thermoplastic material
Length
0
Light type
Red
Net weight
336
Operating mode
Plastic fiber
Output function
Relay output
Protection class
IP67
Setting option
Potentiometer
Special features
keep/defer, Wash down
Switching element function
normally open NO
Volume
0
Wavelength (nm)
660
Weight unit
GRM
Width
0
