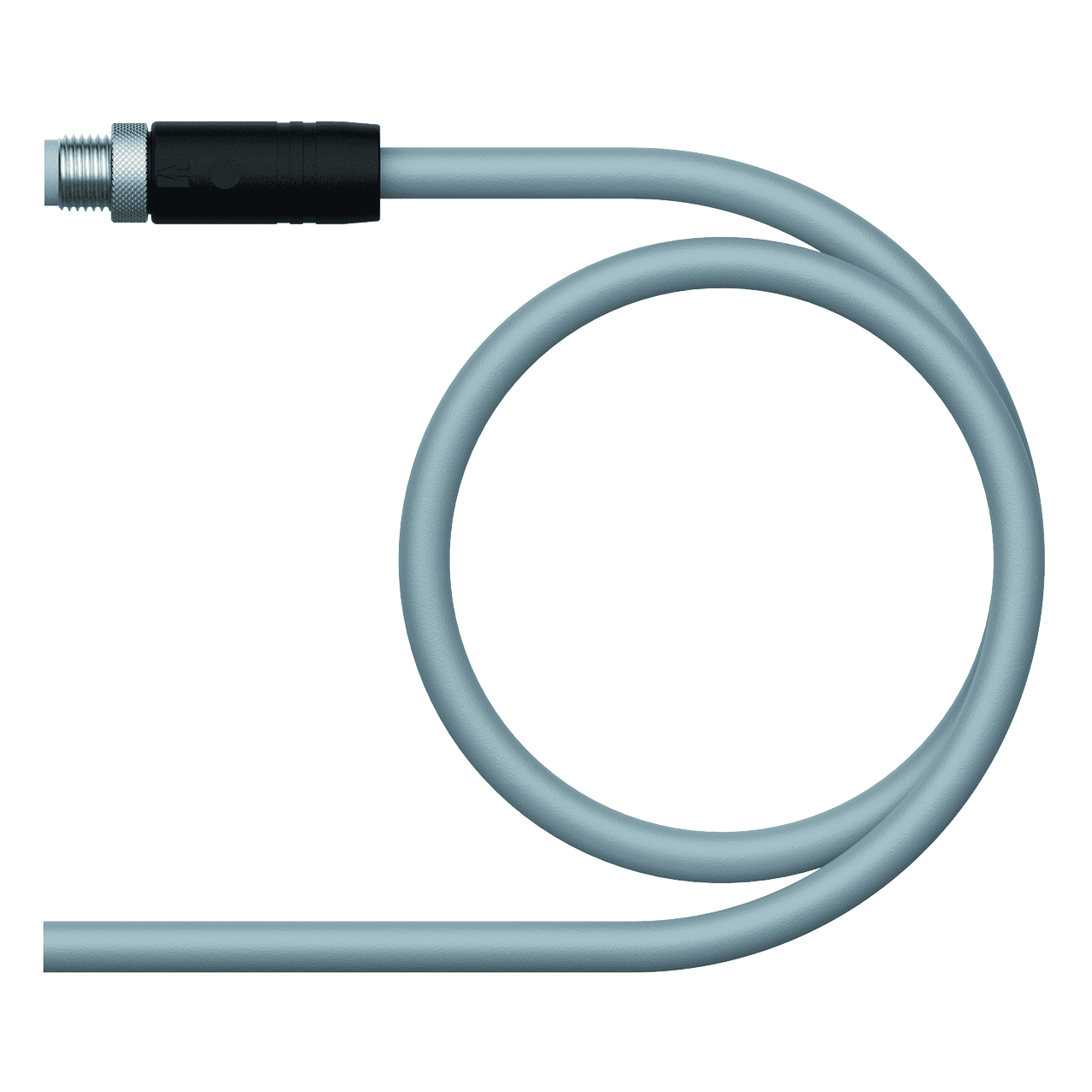

Supply Cable - M12 Power Connection Cable
RSP56PLB-1/TXG
Order ID no. 100018907
In Stock
home
Turck-Shop
Others
RSP56PLB-1/TXG
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-30
Application
Power
Approvals
cULus
Base unit
PCE
Cable color
Gray
Cable diameter (mm)
8
Cable length (m)
1
Cable quality
PUR
Connector A
Male, M12 x 1, Straight, L-coded
Core cross-section (mm²)
1.5
Coupling nut/screw material A
Brass
Current (A)
16
Design
Connection Cable
Dimension unit
MMT
EAN/UPC code
4047101524659
Gross weight
147
Height
20
Length
200
Net weight
147
Number of pins
4+FE
Plug body
Plastic
Special features
Suitable for drag chain use
Volume
0.008
Volume unit
HLT
Weight unit
GRM
Width
200
List Price
A$103.77
Item Total
A$103.77
