Flow Sensor Immersion Sensor without Integrated Processor

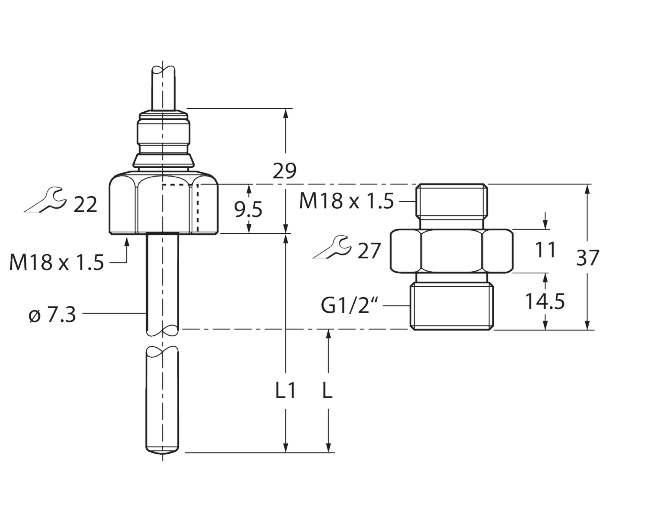

FP100-300L-30-NAEX-2M

Order ID no. 100001065

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -40
Approvals: cULus
Bar length (mm): 45
Base unit: PCE
Design: Without display (integrated probe)
Dimension unit: MMT
EAN/UPC code: 4047101447231
Electrical connection: Cable
Function: Flow monitoring
Gross weight: 1.1
Height: 0
Housing material: Stainless steel
Housing quality: 1.4571 (AISI 316Ti)
Immersion depth L (mm): 16.9
Length: 0
Materials (contact with media): Stainless steel 1.4571 (AISI 316Ti), FKM O-ring, AFM flat seal
Media temperature max. (°C): 85
Media temperature min. (°C): -25
Medium: liquids
Mounting conditions: Immersion sensor
Net weight: 1
Protection class: IP66, IP67, IP69K
Volume: 0
Weight unit: GRM
Width: 0
