SLLCP23-1120P88 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

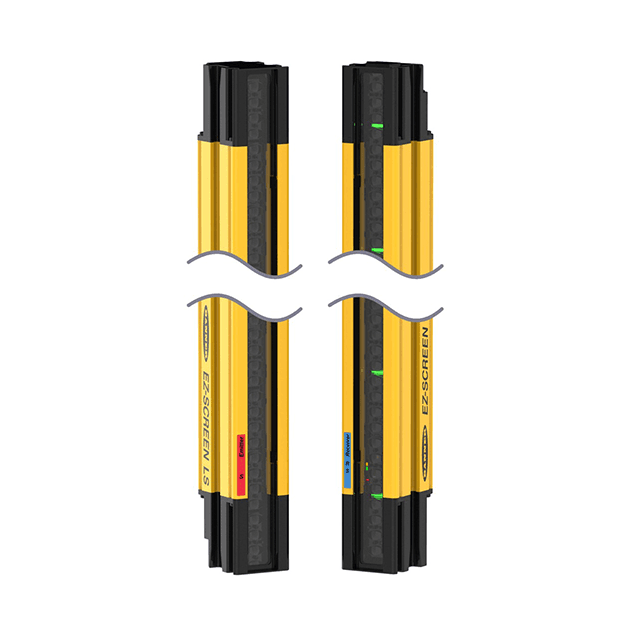

Safety light curtain Pair
SLLCP23-1120P88
Order ID no. 3089770
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-20
Base unit
PCE
Cable length (m)
0.3
Cascadable
Yes
Connector type
M12 x 1
Design
Rectangular

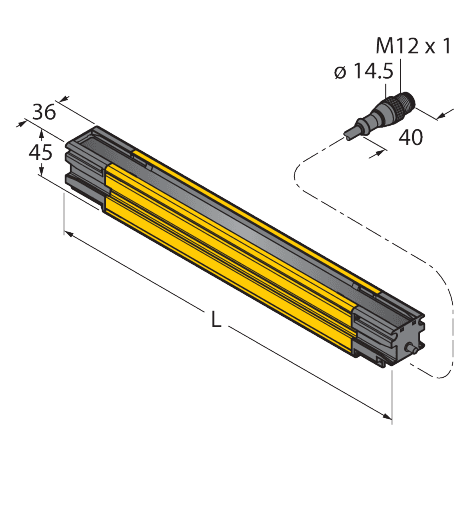

Dimensions
45 mm x 36 mm x 1125 mm
Dimension unit
MMT
EAN/UPC code
662488897703
Electrical connection
Cable with connector
Function
Light curtain
Gross weight
7099
Height
0
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Length
0
Light type
IR
Max. range (mm)
12000
Net weight
7099
Number of beams
64
Optical resolution (mm)
23
Output function
2 x PNP
Protection class
IP65, IP67
Scan field (mm)
1120
Start/Restart interlock
No
Switching element function
2 x NO contact
Volume
0
Weight unit
GRM
Width
0
With muting function
No
home
Turck-Shop
Machine Safety
Safety Light Curtains
SLLCP23-1120P88
Key Features
Cascadable
Yes
Scan field (mm)
1120
Number of beams
64
Optical resolution (mm)
23
In Stock
List Price
A$6,238.93
Item Total
A$6,238.93
