SLPMP14-1110 | TURCK - Your Global Automation Partner
Safety light curtain Emitter/Receiver Pair
SLPMP14-1110
Order ID no. 3084491
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Base unit
PCE
Cascadable
No
Design
Rectangular

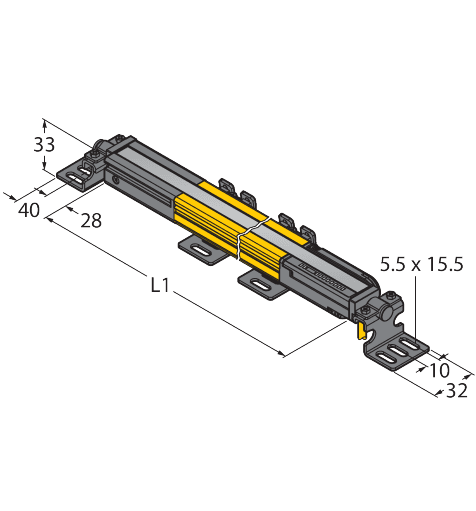

Dimensions
26 mm x 28 mm x 1108 mm
Dimension unit
MMT
EAN/UPC code
662488844912
Electrical connection
Cable entry for flat connector
Function
Light curtain
Gross weight
2470
Height
0
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Length
0
Light type
IR
Max. range (mm)
7000
Net weight
2470
Number of beams
56
Optical resolution (mm)
14
Output function
2 x PNP
Protection class
IP65
Scan field (mm)
1110
Start/Restart interlock
Adjustable
Switching element function
2 x NC contact
Volume
0
Wavelength (nm)
850
Weight unit
GRM
Width
0
With muting function
Yes
home
Turck-Shop
Machine Safety
Safety Light Curtains
SLPMP14-1110
Key Features
Cascadable
No
Scan field (mm)
1110
Number of beams
56
Optical resolution (mm)
14
In Stock
