Safety light curtain for personnel safety Emitter

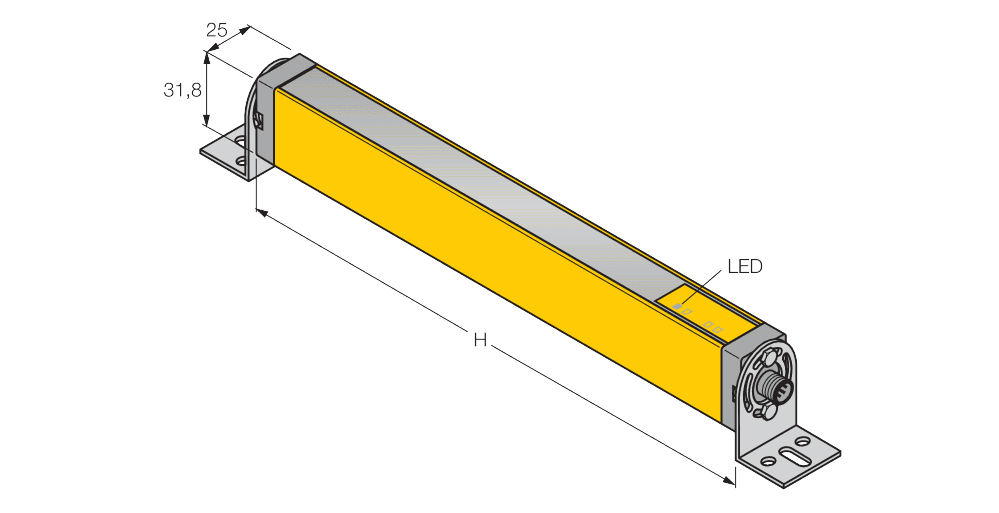

LS2E30-1350Q8
Order ID no. 3073532
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Base unit
PCE
Cascadable
No
Connector type
M12 x 1
Design
Rectangular
Dimensions
31,8 mm x 25,2 mm x 1414 mm
Dimension unit
MMT
EAN/UPC code
662488735326
Electrical connection
Connector
Function
Light curtain
Gross weight
2767
Height
0
Housing material
Metal
Housing quality
AL
Housing surface
Yellow polyester
Length
0
Light type
IR
Max. range (mm)
15000
Net weight
2767
Number of beams
72
Optical resolution (mm)
30
Protection class
IP65
Scan field (mm)
1350
Volume
0
Wavelength (nm)
950
Weight unit
GRM
Width
0
With muting function
No
home
Turck-Shop
Machine Safety
Safety Light Curtains
LS2E30-1350Q8
Key Features
Cascadable
No
Scan field (mm)
1350
Number of beams
72
Optical resolution (mm)
30
