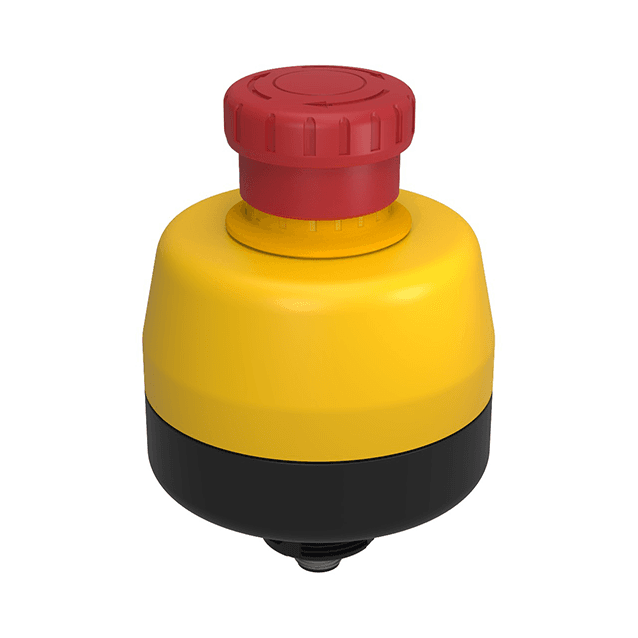

Emergency shutdown Emergency stop button
SSA-EB1P-11ECQ4
Order ID no. 3025299
In Stock
List Price
A$390.46
Item Total
A$390.46
Quantity
−
+
add_shopping_cart
Add to Cart
home
Turck-Shop
Machine Safety
Emergency Stop Controls
SSA-EB1P-11ECQ4
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-25
Base unit
PCE
Cascadable
Yes
Connector type
M12 x 1
Construction size
⌀ 80 mm
Design
Cylinder, threaded
Dimensions
119,8 mm
Dimension unit
MMT
EAN/UPC code
662488252991
Electrical connection
Connector
Function
E-stop button, unlit
Gross weight
269
Height
8
Housing material
Plastic
Housing quality
PC
Length
113
Net weight
269
Operating voltage
AC/DC
Output function
Potential-free
Protection class
IP65
Switching element function
NC contact
Volume
90.4
Volume unit
CMQ
Weight unit
GRM
Width
100
Key Features
Protection class
IP65
Switching element function
NC contact
