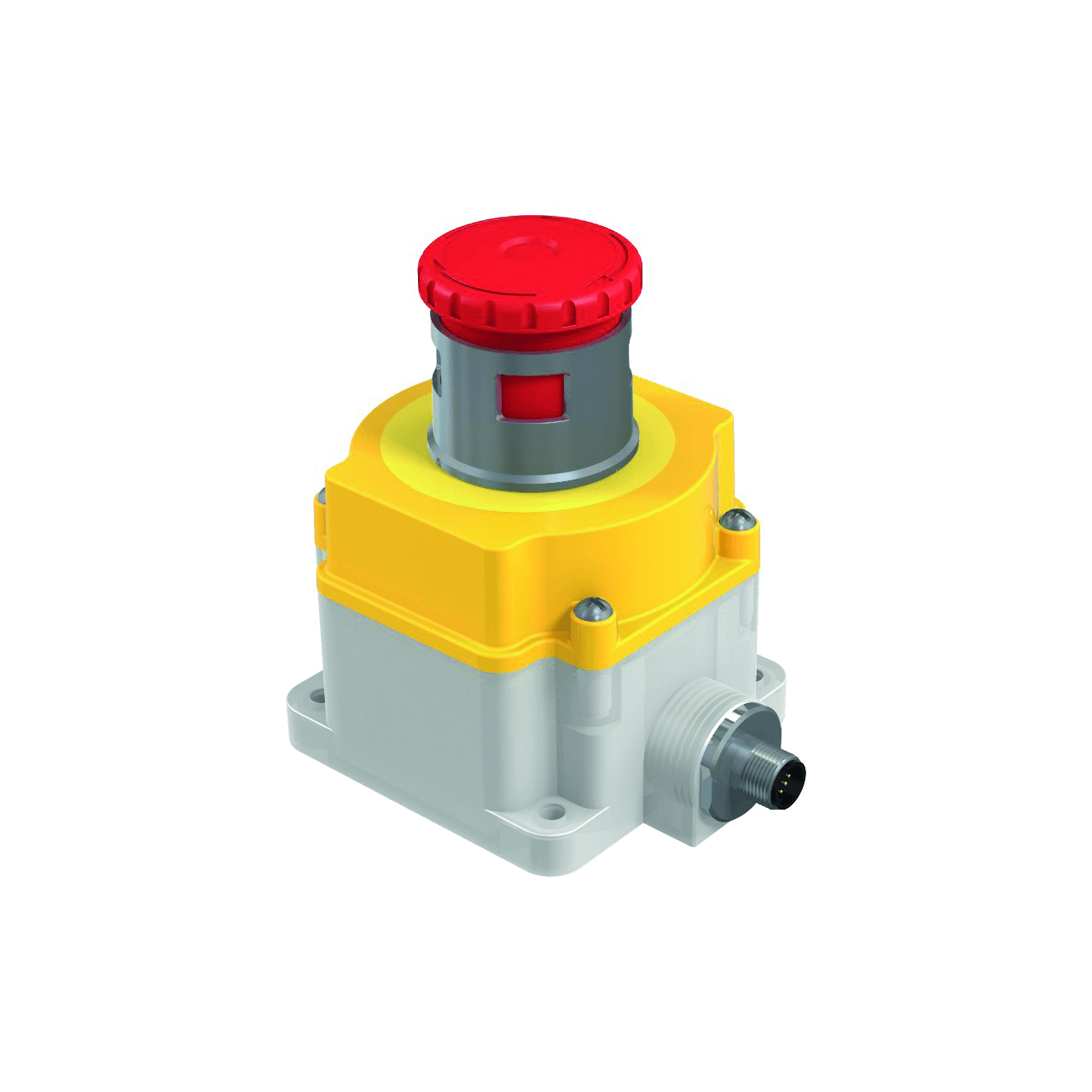

Emergency shutdown Emergency stop button
SSA-EB1ML2P-12ED1Q8
Order ID no. 3025077
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
-25
Base unit
PCE
Cascadable
Yes
Connector type
M12 x 1
Design
Rectangular

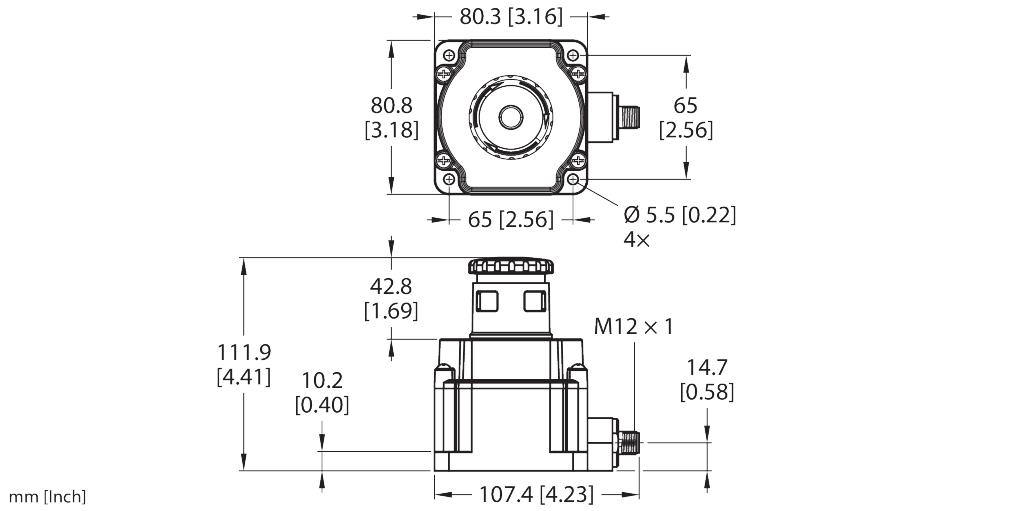

Dimensions
80,3 mm x 80,8 mm x 111,9 mm
Dimension unit
MMT
EAN/UPC code
662488250775
Electrical connection
Connector
Function
E-stop button, unlit
Gross weight
453
Height
0
Housing material
Plastic
Housing quality
PC
Length
0
Net weight
453
Operating voltage
AC/DC
Output function
Potential-free
Protection class
IP65
Special features
Lockable
Start/Restart interlock
Yes
Switching element function
2 x NC contact
Volume
0
Weight unit
GRM
Width
0
Key Features
Protection class
IP65
Switching element function
2 x NC contact
