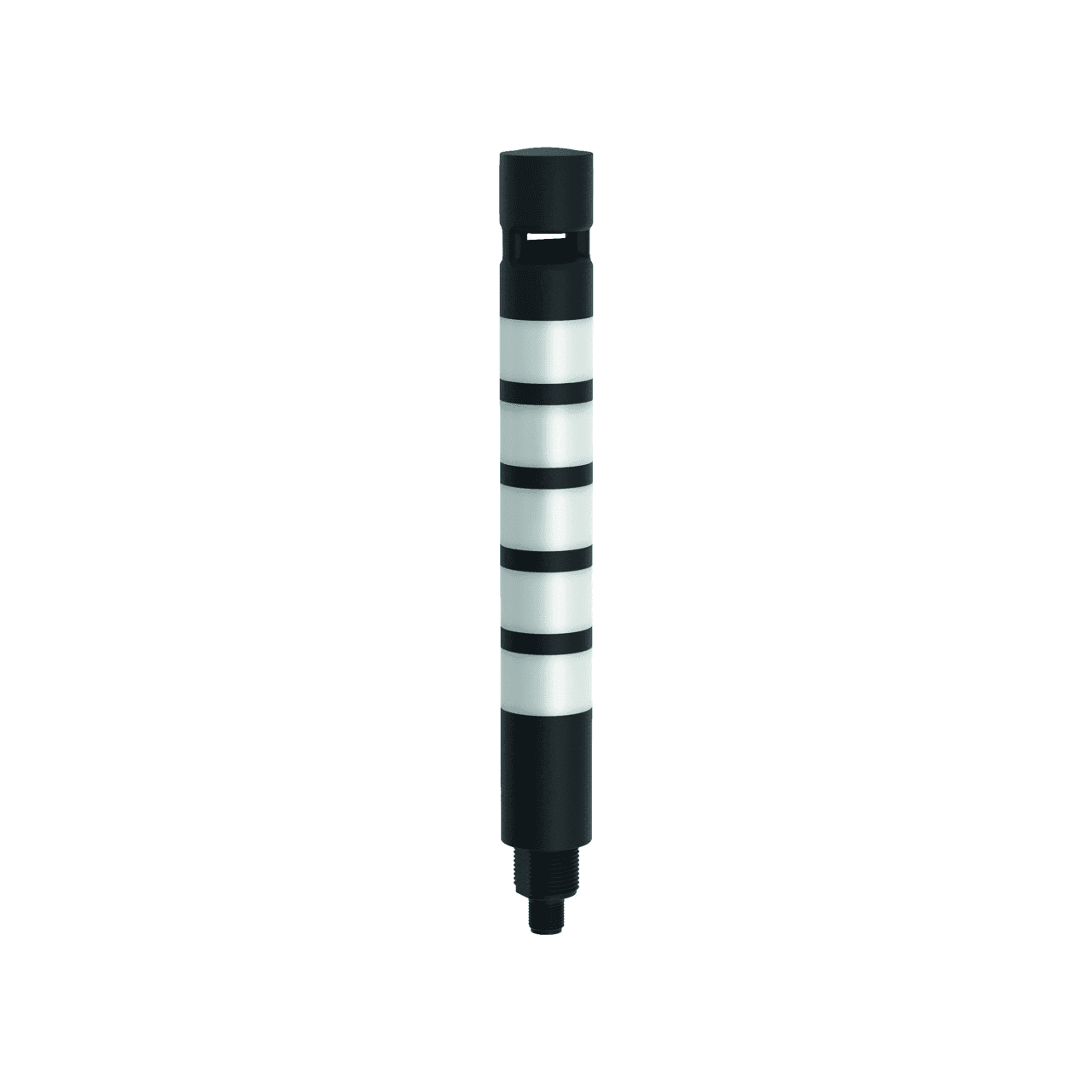

LED signal light Tower light
TL30BWBGYRAXQD
Order ID no. 3805418
In Stock
home
Turck-Shop
Lighting and Indicators
Tower Lights
TL30BWBGYRAXQD
Technical Data
Downloads
Acoustic signal
Continuous tone
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Base unit
PCE
Cascadable
No
Connector type
M12 x 1
Construction size
⌀ 30 mm
Design
Smooth barrel

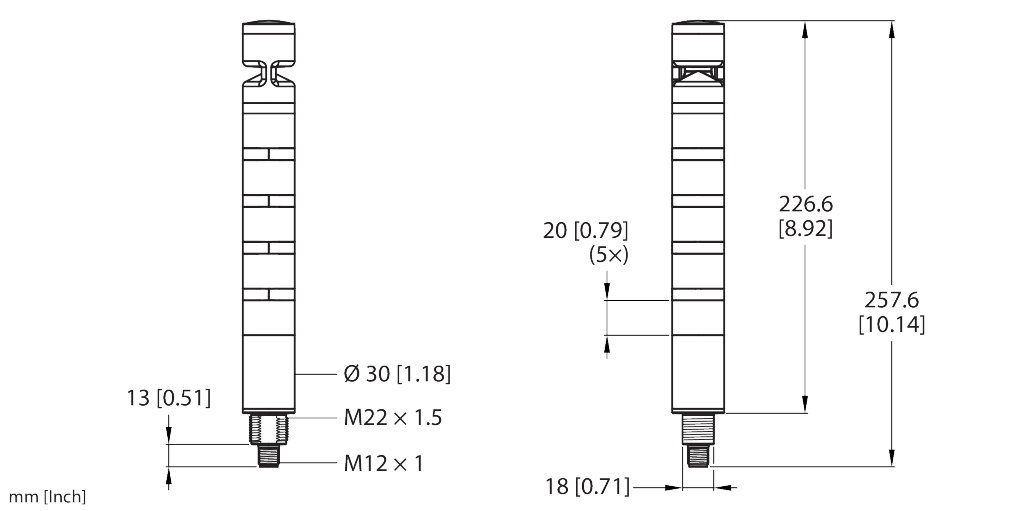

Dimensions
257,6 mm
Dimension unit
MMT
Dimmable
No
EAN/UPC code
662488040734
Electrical connection
Connector
Function
Tower light
Gross weight
184
Height
70
Housing material
Plastic
Housing quality
PC
Housing surface
Black
Input type
Bipolar (PNP/NPN)
Length
280
Light type
Blue, Green, Red, White, Yellow
Net weight
184
Number of colors/segments
5
Operating voltage
DC
Protection class
IP65
Volume
1.764
Volume (dB)
90 dB
Volume unit
DMQ
Weight unit
GRM
Width
90
Key Features
Acoustic signal
Continuous tone
Dimmable
No
Light type
White, Blue, Green, Yellow, Red
Number of colors/segments
5
