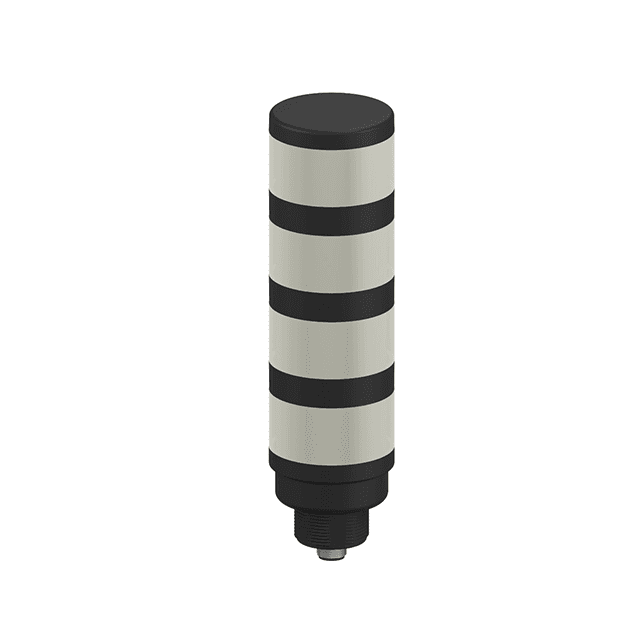

LED signal light Tower light
TL504KQ
Order ID no. 3804909
In Stock
home
Turck-Shop
Lighting and Indicators
Tower Lights
TL504KQ
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Base unit
PCE
Cascadable
No
Communication protocol
IO-Link
Connector type
M12 x 1
Construction size
⌀ 50 mm
Design
Smooth barrel

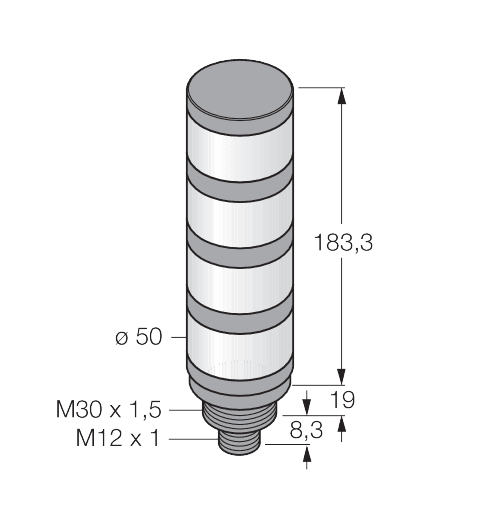

Dimensions
210,6 mm
Dimension unit
MMT
Dimmable
Programmable
EAN/UPC code
662488036096
Electrical connection
Connector
Function
Tower light
Gross weight
285.76
Height
60
Housing material
Plastic
Housing quality
ABS
Housing surface
Black
Input type
Communication protocol
Length
300
Light type
RGB
Net weight
285.76
Number of colors/segments
4
Protection class
IP67
Volume
1.62
Volume unit
DMQ
Weight unit
GRM
Width
90
Key Features
Dimmable
Programmable
Light type
RGB
Number of colors/segments
4
