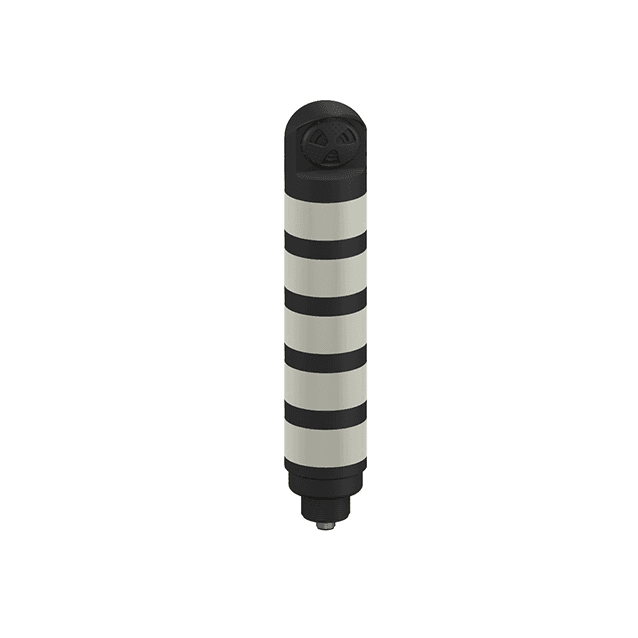

LED signal light Tower light
TL50WBGYRALSQ
Order ID no. 3094309
In Stock
home
Turck-Shop
Lighting and Indicators
Tower Lights
TL50WBGYRALSQ
Technical Data
Downloads
Acoustic signal
Continuous tone
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-20
Base unit
PCE
Cascadable
No
Connector type
M12 x 1
Construction size
⌀ 50 mm
Design
Smooth barrel

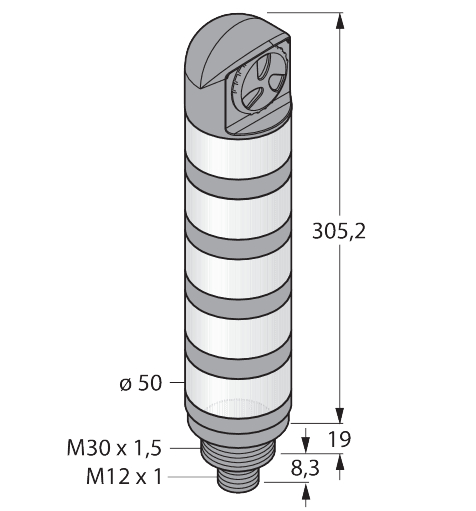

Dimensions
286,3 mm
Dimension unit
MMT
Dimmable
No
EAN/UPC code
662488943097
Electrical connection
Connector
Function
Tower light
Gross weight
396
Height
65
Housing material
Plastic
Housing quality
ABS
Housing surface
Black
Input type
Bipolar (PNP/NPN)
Length
440
Light type
Blue, Green, Red, White, Yellow
Net weight
396
Number of colors/segments
5
Protection class
IP50
Volume
2431
Volume (dB)
94 dB
Volume unit
CMQ
Weight unit
GRM
Width
85
Key Features
Acoustic signal
Continuous tone
Dimmable
No
Light type
White, Blue, Green, Yellow, Red
Number of colors/segments
5
