K50ALBT2GRHQ | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

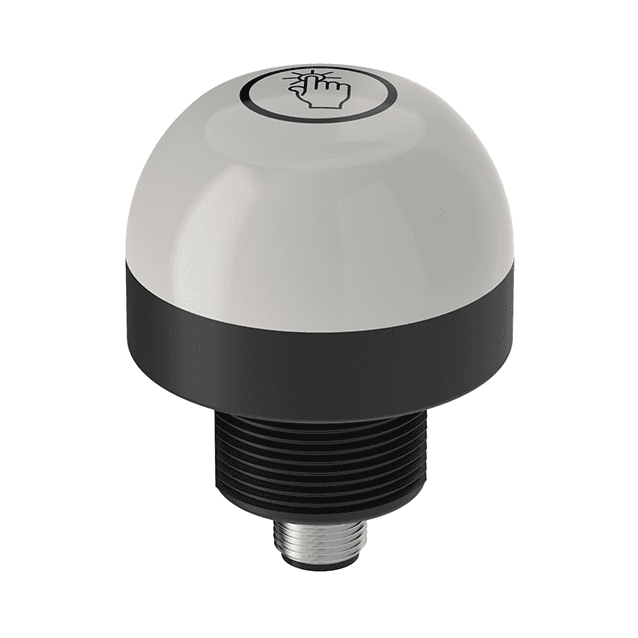

Pick-to-Light Pick-and-place sensor
K50ALBT2GRHQ
Order ID no. 3802582
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 50 mm
Design
Dome

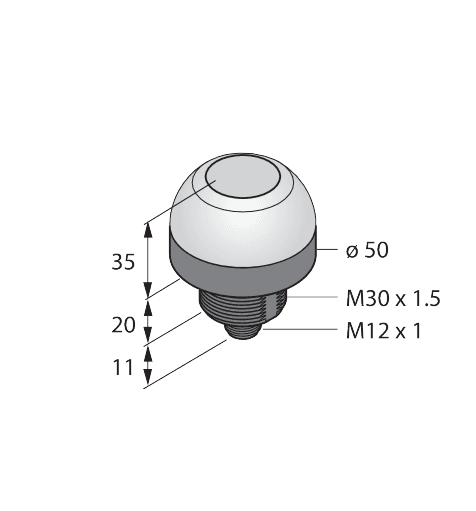

Dimensions
66 mm
Dimension unit
MMT
EAN/UPC code
662488017804
Electrical connection
Connector
Function
Touch Button
Gross weight
136.08
Height
30
Housing material
Plastic
Housing quality
PC
Housing surface
Black
Input type
PNP
Length
60
Light type
Green, Red
Net weight
136.08
Number of colors/segments
2
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP67, IP69
Special features
I/O module-compatible, Wash down
Switching element function
normally open NO
Volume
108
Volume unit
CMQ
Weight unit
GRM
Width
60
home
Turck-Shop
Lighting and Indicators
LED Indicators
K50ALBT2GRHQ
Key Features
Light type
Green, Red
Number of colors/segments
2
In Stock
