K50FF100GRYS1Q | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

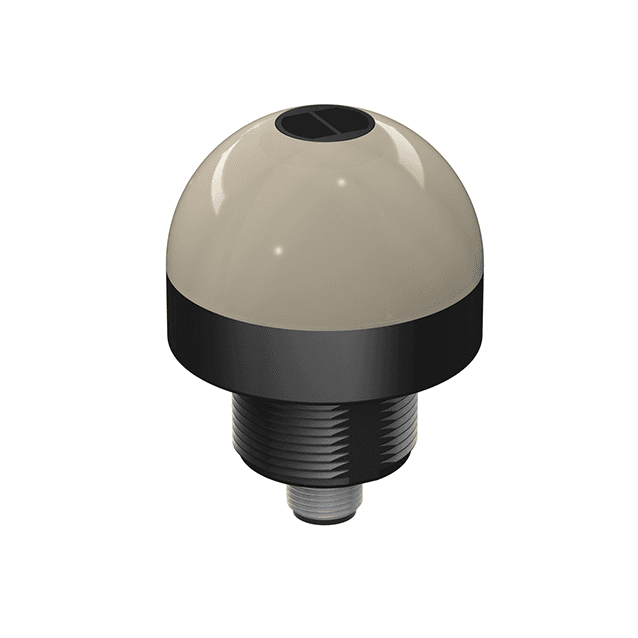

Pick-to-Light Pick-and-place sensor
K50FF100GRYS1Q
Order ID no. 3093509
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Base unit
PCE
Communication protocol
Modbus RTU
Connector type
M12 x 1
Construction size
⌀ 50 mm
Design
Dome

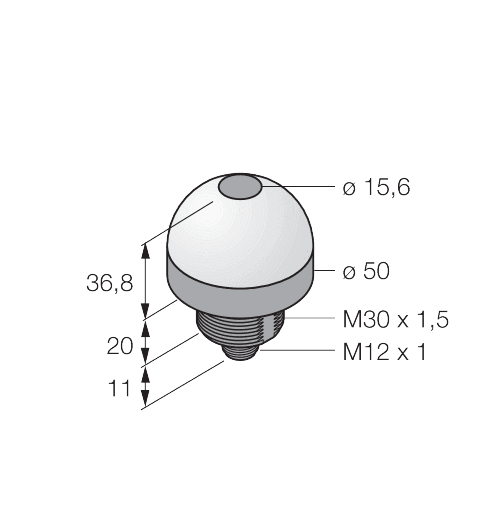

Dimensions
67,8 mm
Dimension unit
MMT
EAN/UPC code
662488935092
Electrical connection
Connector
Function
Diffuse mode sensor with fixed-field background suppression
Gross weight
143
Height
75
Housing material
Plastic
Housing quality
PC
Housing surface
Black
Input type
Communication protocol
Length
120
Light type
IR
Max. range (mm)
100
Net weight
143
Number of beams
1
Number of colors/segments
3
Operating voltage
DC
Output function
PNP/NPN
Protection class
IP67, IP69
Special features
Wash down
Switching element function
normally open NO
Volume
1080
Volume unit
CMQ
Wavelength (nm)
880
Weight unit
GRM
Width
120
home
Turck-Shop
Lighting and Indicators
LED Indicators
K50FF100GRYS1Q
Key Features
Light type
IR
Number of colors/segments
3
In Stock
List Price
A$484.04
Item Total
A$484.04
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
