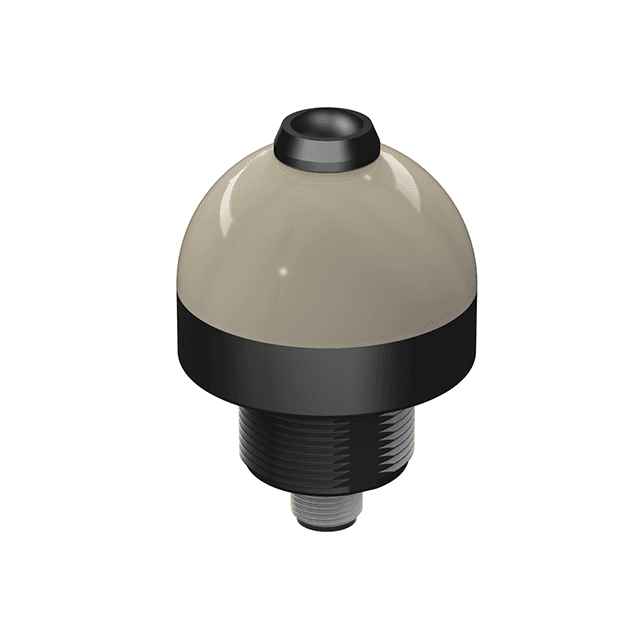

Pick-to-Light Pick-and-place sensor
K50APPBGRCQ
Order ID no. 3076312
In Stock
List Price
A$355.70
home
Turck-Shop
Lighting and Indicators
LED Indicators
K50APPBGRCQ
Technical Data
Downloads
Ambient temperature max. (°C)
50
Ambient temperature min. (°C)
-40
Base unit
PCE
Connector type
M12 x 1
Construction size
⌀ 50 mm
Design
Dome
Dimensions
74,7 mm
Dimension unit
MMT
EAN/UPC code
662488763121
Electrical connection
Connector
Function
Pushbutton
Gross weight
143
Height
60
Housing material
Plastic
Housing quality
PC, Thermoplastic material
Housing surface
Black
Input type
PNP
Length
120
Light type
Green, Red
Net weight
143
Number of colors/segments
2
Operating voltage
DC
Output function
PNP
Protection class
IP67, IP69
Special features
Wash down
Switching element function
normally open NO
Volume
864
Volume unit
CMQ
Weight unit
GRM
Width
120
Key Features
Light type
Green, Red
Number of colors/segments
2
