Isolating switching amplifier 1-channel

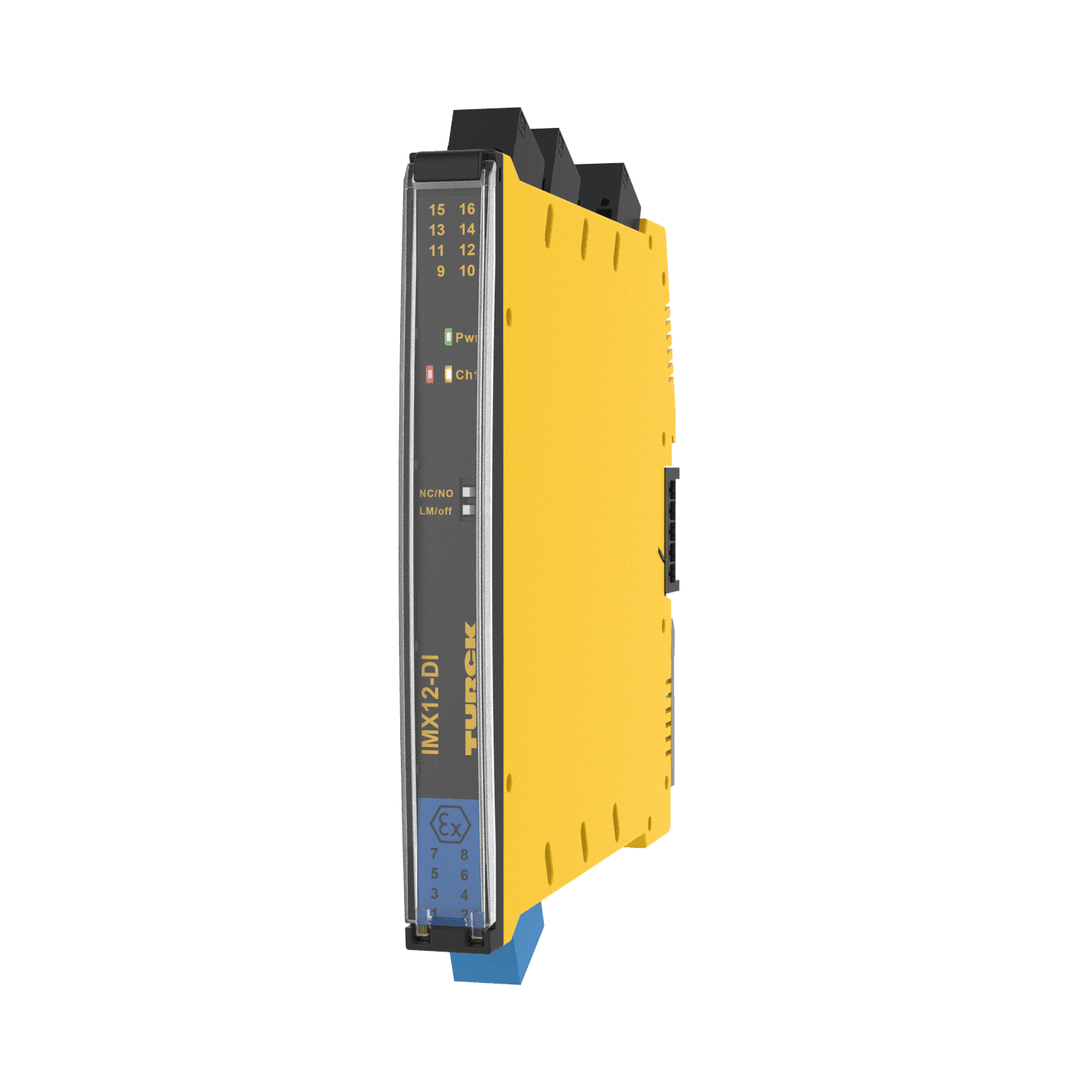

IMX12-DI03-1S-1NAM1T-PR/24VDC/CC
Order ID no. 7580007
In Stock
home
Turck-Shop
Interface Technology
Safety Barriers
IMX12-DI03-1S-1NAM1T-PR/24VDC/CC
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, IECEx, KOSHA, NEPSI, TR CU
Base unit
PCE
Connection variant
Power bridge with collective fault signal
Digital output
NAMUR and transistor output
Dimensions
120 mm x 12,5 mm x 128 mm
Dimension unit
MMT
EAN/UPC code
4047101310412
Electrical connection
Removable spring-type terminals, 2-pin
Ex version
yes
Functional safety (SIL/PL)
SIL 2
Gross weight
154
Height
25
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Length
130
Net weight
154
Nominal voltage
Power bridge 24 VDC
Number of channels
1
Power supply
24 VDC
Protection class
IP20
Signal type
Digital input
Volume
422.5
Volume unit
CMQ
Weight unit
GRM
Width
130
Key Features
Number of channels
1
Signal type
Digital input
Nominal voltage
Power bridge 24 VDC
List Price
A$550.66
Item Total
A$550.66
