Isolating switching amplifier 2-channel
IMC-DI-22EX-PNC/24VDC
Order ID no. 7560010
In Stock
home
Turck-Shop
Interface Technology
Safety Barriers
IMC-DI-22EX-PNC/24VDC
Technical Data
Downloads
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, cFMus, IECEx, TR CU
Base unit
PCE
Digital output
Transistor output

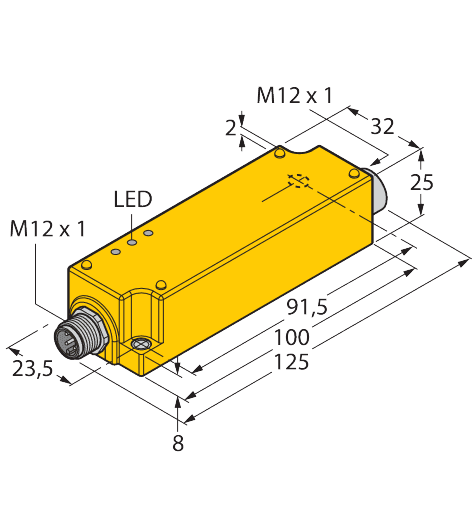

Dimensions
100 mm x 32 mm x 25 mm
Dimension unit
MMT
EAN/UPC code
4047101120851
Electrical connection
M12 receptacle
Ex version
yes
Functional safety (SIL/PL)
SIL 2
Gross weight
184
Height
25
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Length
130
Net weight
184
Nominal voltage
24 VDC
Number of channels
2
Power supply
24 VDC
Protection class
IP67
Signal type
Digital input
Volume
97.5
Volume unit
CMQ
Weight unit
GRM
Width
30
Key Features
Number of channels
2
Signal type
Digital input
Nominal voltage
24 VDC
List Price
A$1,042.29
Item Total
A$1,042.29
