Accessories Power bridge power supply module
IMX12-PS02-UI-UIR-PR/24VDC
Order ID no. 7580610
In Stock
home
Turck-Shop
Interface Technology
Accessories
IMX12-PS02-UI-UIR-PR/24VDC
Technical Data
Downloads
Accessory type
Supply module
Ambient temperature max. (°C)
70
Ambient temperature min. (°C)
-25
Approvals
ATEX, IECEx, NEPSI
Base unit
PCE

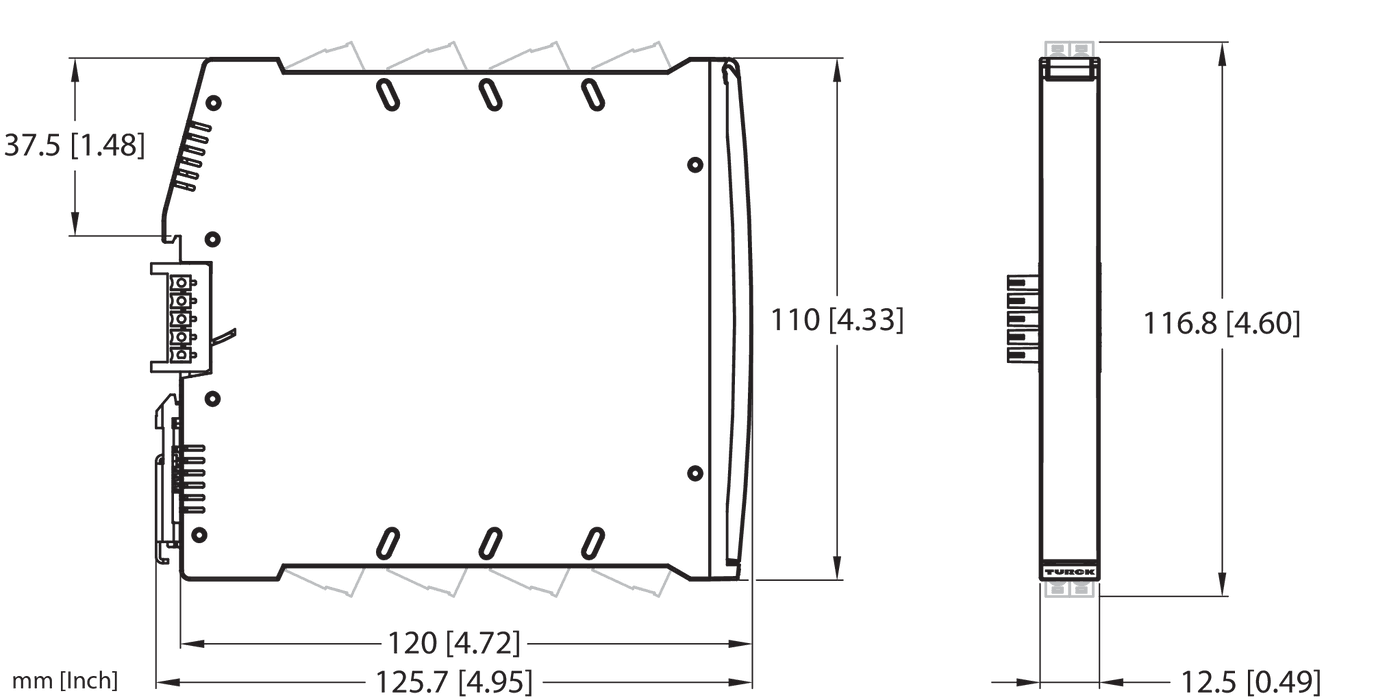

Dimensions
120 mm x 12,5 mm x 117 mm
Dimension unit
MMT
EAN/UPC code
4047101388527
Electrical connection
Removable screw terminals, 2-pin
Ex version
no
Gross weight
152
Height
20
Housing material
Plastic
Housing quality
Polycarbonate/ABS
Length
120
Net weight
152
Nominal voltage
Power bridge 24 VDC
Number of channels
1
Parallel mode
yes, via diodes
Power Good Output
yes
Power supply
24 VDC
Protection class
IP20
Volume
240
Volume unit
CMQ
Weight unit
GRM
Width
100
Key Features
Accessory type
Supply module
Number of channels
1
Protection class
IP20
Nominal voltage
Power bridge 24 VDC
List Price
A$394.00
Item Total
A$394.00
