- Ambient temperature max. (°C)
- 70
- Ambient temperature min. (°C)
- -40
- Approvals
- ATEX Zone 2/22, CCC, cULus, IECEx
- Base unit
- PCE
- Connection technology Ethernet
- 2 x M12, 8-pin, X-coded, 8 x M12, 4-pin, D-coded

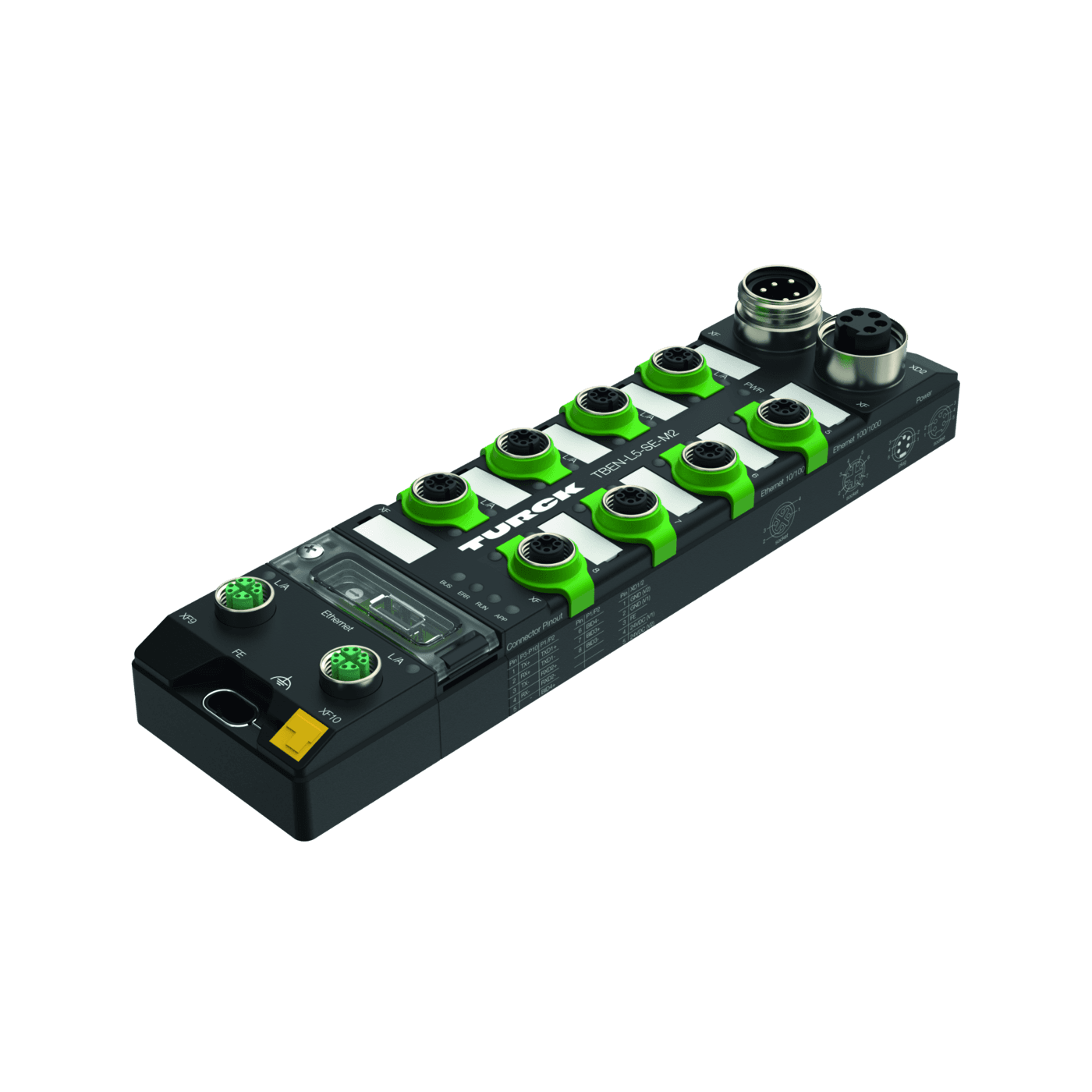

- Device type
- Ethernet switch

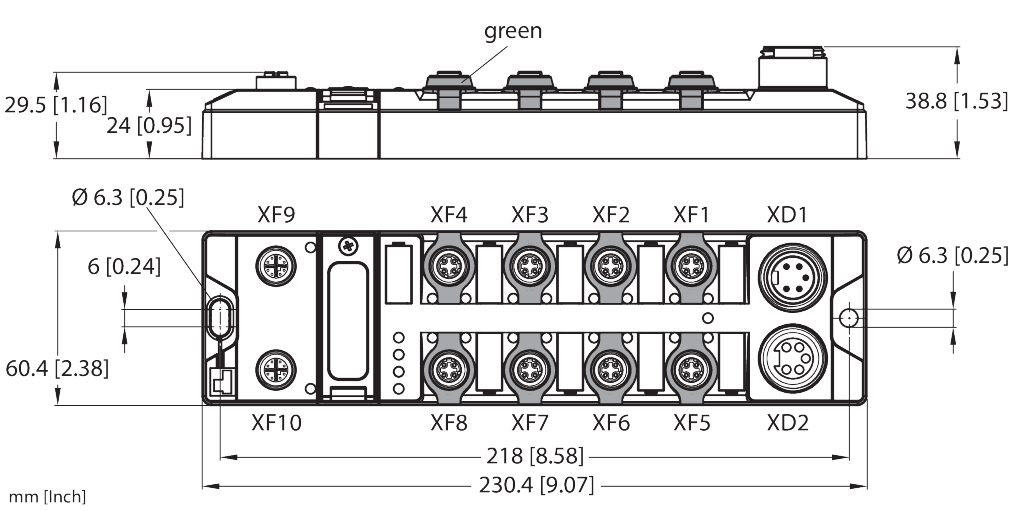

- Dimensions
- 230,4 mm x 60,4 mm x 38,8 mm
- Dimension unit
- MMT
- EAN/UPC code
- 4047101499377
- Function
- Managed
- Gross weight
- 607
- Height
- 50
- Installation area
- zone 2, zone 22
- Length
- 240
- Net weight
- 607
- Network protocol
- EtherNet/IP, Modbus TCP, PROFINET
- Number of channels
- 16
- Number of Ethernet ports
- 10 ports
- Protection class
- IP65, IP67, IP69K
- Transmission rate Ethernet
- 10/100/1000 Mbps
- Voltage supply connection
- 7/8″, 5-pin
- Volume
- 0.78
- Volume unit
- DMQ
- Weight unit
- GRM
- Width
- 65
