piconet stand-alone module for PROFIBUS-DP 1-channel Incremental Encoder Interface
SDPB-10S-0001
Order ID no. 6824074
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
55
Ambient temperature min. (°C)
0
Approvals
cULus
Base unit
PCE
Connection technology signal
M12, M23
Device type
Compact station, I/O Module

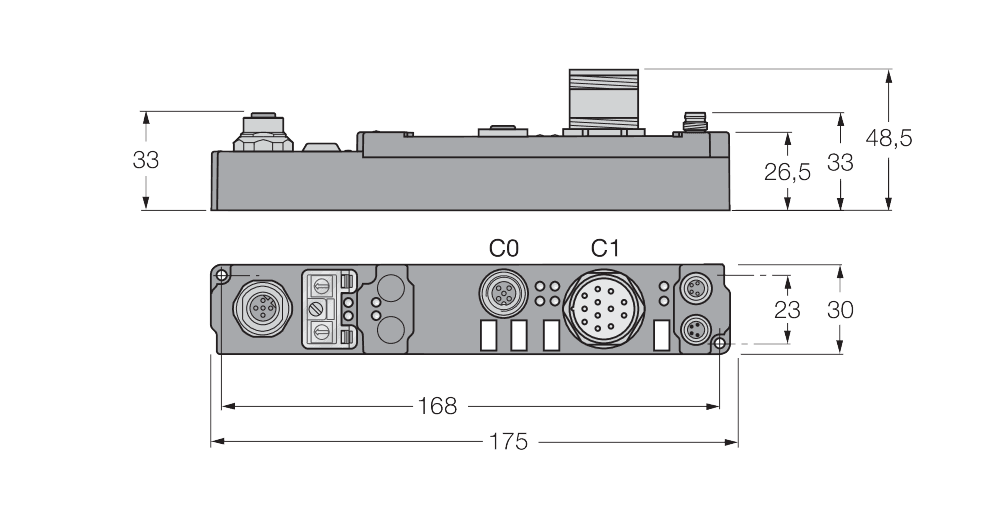

Dimensions
175 mm x 30 mm x 26,5 mm
Dimension unit
MMT
EAN/UPC code
4047101177992
Fieldbus connection technology
1 x M12
Fieldbus transmission rate
9.6 kbps …12 Mbps
Gross weight
288
Height
30
Length
180
Net weight
288
Network protocol
PROFIBUS-DP
Number of channels
1
Operating voltage
DC
Protection class
IP67
Voltage supply connection
2 x M8
Volume
270
Volume unit
CMQ
Weight unit
GRM
Width
50
home
Turck-Shop
Fieldbus Technology
I/O Systems
SDPB-10S-0001
Key Features
Connection technology signal
M12, M23
Network protocol
PROFIBUS-DP
Protection class
IP67
In Stock
List Price
A$2,138.47
Item Total
A$2,138.47
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
