IP20 Junction Box with Short-Circuit Protection, 6-Channel FOUNDATION Fieldbus and PROFIBUS-PA

JRBS-40DC-6RV

Order ID no. 6611833

In Stock
List Price	A$2,041.15

Ambient temperature max. (°C): 70
Ambient temperature min. (°C): -50
Approvals: ATEX, Ex-Approval, FM, IECEx
Base unit: PCE
Device type: Active fieldbus junction box

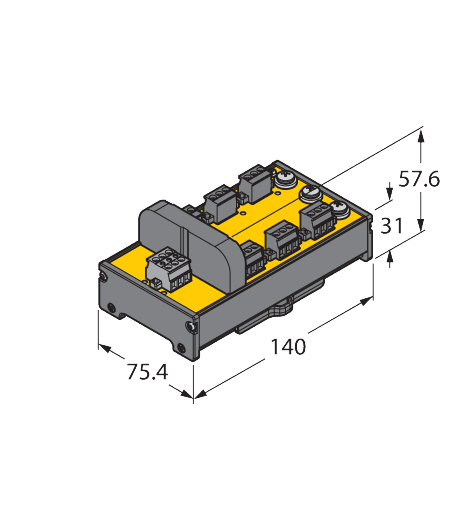

Dimensions: 75,5 mm x 140,8 mm x 49 mm
Dimension unit: MMT
EAN/UPC code: 4047101284188
Electrical connection: Removable terminal block, reverse polarity protected, screw connection
Gross weight: 476
Height: 30
Housing material: Aluminium
Length: 150
Net weight: 476
Network protocol: FOUNDATION fieldbus, PROFIBUS-PA
Number of channels: 6
Protection class: IP20
Volume: 315
Volume unit: CMQ
Weight unit: GRM
Width: 70
