FW-ERKPM0414-PS-S-0810 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

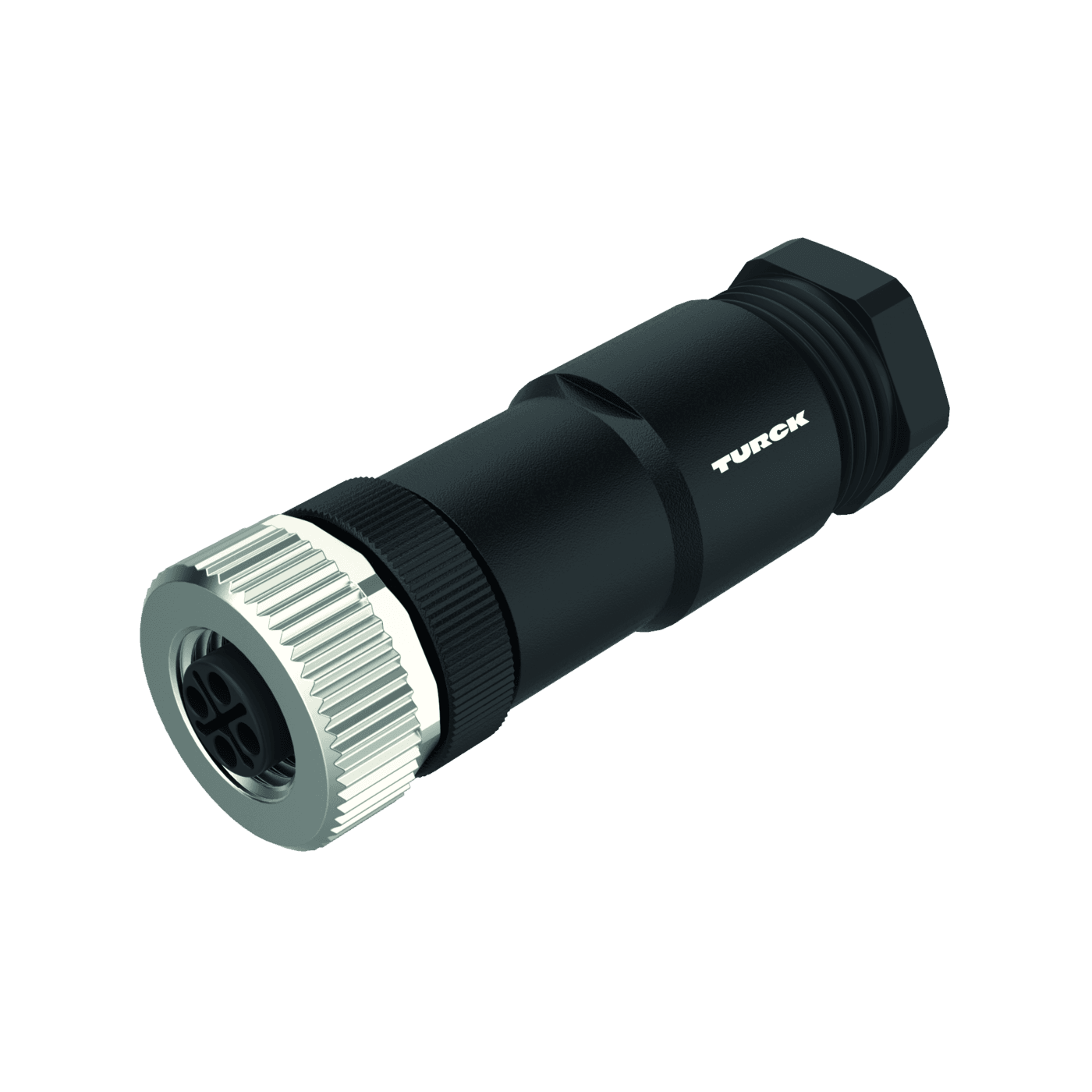

Field-Wireable Connector M12 Power
FW-ERKPM0414-PS-S-0810
Order ID no. 100026332
home
Home
Loading...
Technical Data
Downloads
Application
Power
Approvals
cULus recognized
Base unit
PCE
Connection mode
Screw/clamp connection
Connector A
Female, M12 x 1, Straight, S-coded
Coupling nut/screw material A
Die-cast Zinc
Cross-sectional connection max. (mm²)
2.5 mm²
Current (A)
12
Device type
Field-wireable connector
Dimension unit
MMT
EAN/UPC code
4047101537024
Gross weight
30
Height
10
Length
10
Net weight
30
Number of pins
3+PE
Plug body
Plastic
Voltage (V)
630
Volume
0.001
Volume unit
DMQ
Weight unit
GRM
Width
10
home
Turck-Shop
Connectivity
Field-wireable Connectors
FW-ERKPM0414-PS-S-0810
Key Features
Connection mode
Screw/clamp connection
Number of pins
3+PE
Application
Power
In Stock
List Price
A$74.58
Item Total
A$74.58
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
