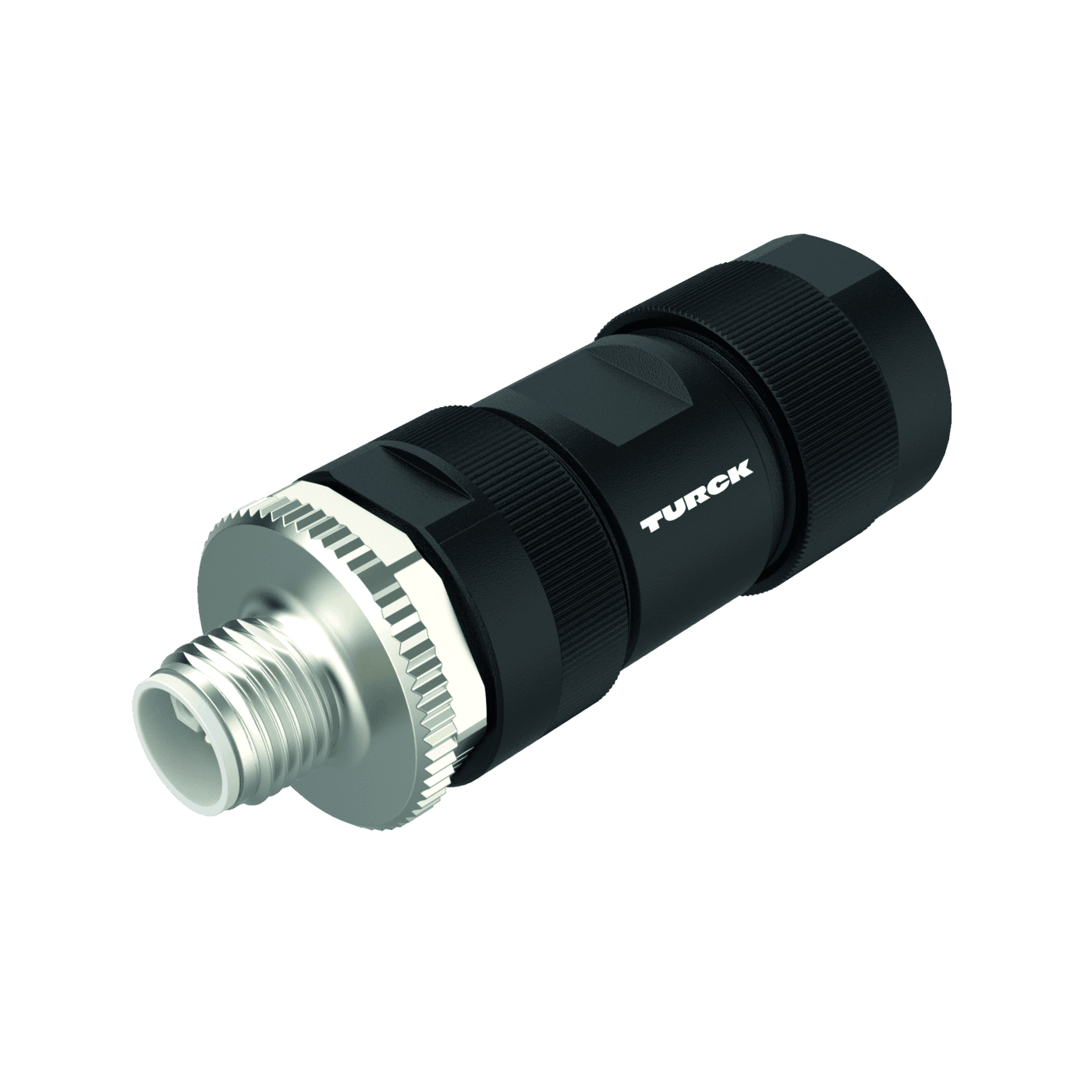

Field-Wireable Connector M12 Power
FW-ERSPM0514-PL-S-0813
Order ID no. 100008140
home
Home
Loading...
Technical Data
Downloads
Application
Power
Approvals
cULus recognized
Base unit
PCE
Connection mode
Screw/clamp connection
Connector A
Male, M12 x 1, Straight, L-coded
Coupling nut/screw material A
Die-cast Zinc
Cross-sectional connection max. (mm²)
2.5 mm²
Current (A)
16
Device type
Field-wireable connector
Dimension unit
MMT
EAN/UPC code
4047101511321
Gross weight
46
Height
10
Length
60
Net weight
46
Number of pins
4+FE
Plug body
Plastic
Volume
0.012
Volume unit
DMQ
Weight unit
GRM
Width
20
home
Turck-Shop
Connectivity
Field-wireable Connectors
FW-ERSPM0514-PL-S-0813
Key Features
Connection mode
Screw/clamp connection
Number of pins
4+FE
Application
Power
In Stock
List Price
A$84.63
Item Total
A$84.63
