HT-WWAK4-5/S2430 | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios
High-Temperature Resistant Actuator and Sensor Cable Connection Cable
HT-WWAK4-5/S2430
Order ID no. 8036089
home
Home
Loading...
Technical Data
Downloads
Application
Signal
Base unit
PCE
Cable color
White
Cable diameter (mm)
3.8
Cable length (m)
5
Cable quality
PTFE

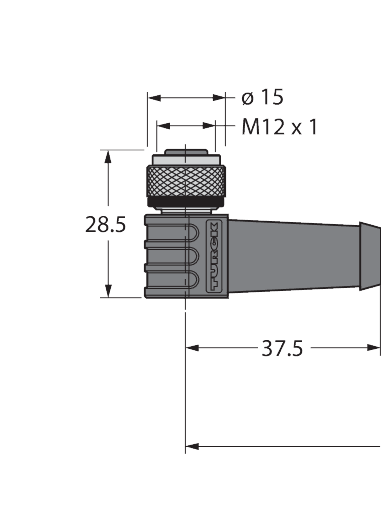

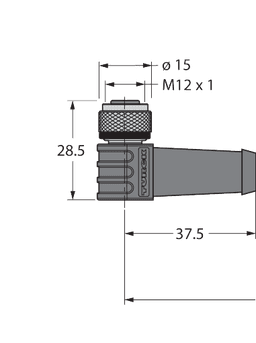

Connector A
Female, M12 x 1, Angled
Core cross-section (mm²)
0.34
Coupling nut/screw material A
Brass
Current (A)
4
Design
Connection Cable
Dimension unit
MMT
EAN/UPC code
4047106005207
Gross weight
194
Height
10
Length
180
Net weight
194
Number of pins
4
Plug body
Plastic
Special features
High temperature, Resistant to welding sparks
Voltage (V)
250
Volume
324
Volume unit
CMQ
Weight unit
GRM
Width
180
