PKGH3M-20/TFG | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

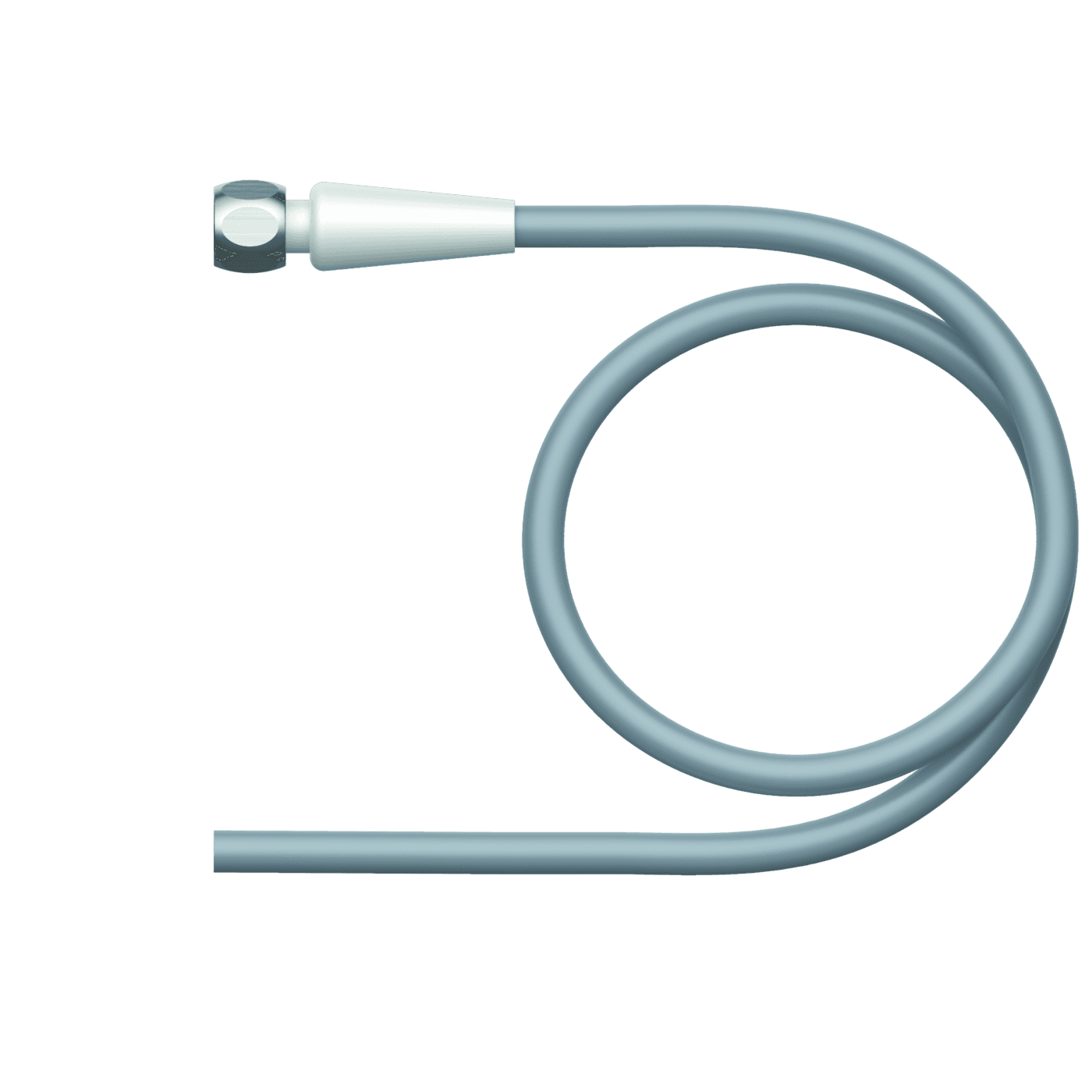

Food & Beverage Hygienic, TPE Connection Cable
PKGH3M-20/TFG
Order ID no. 6933489
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
105
Ambient temperature min. (°C)
-25
Application
Food and beverages (F&B), Signal
Base unit
PCE
Cable color
Gray
Cable diameter (mm)
4.2
Cable length (m)
20
Cable quality
TPE-O

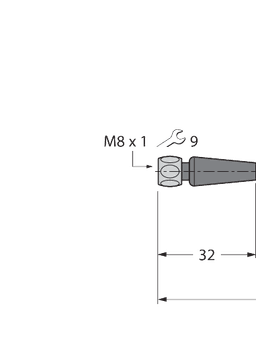

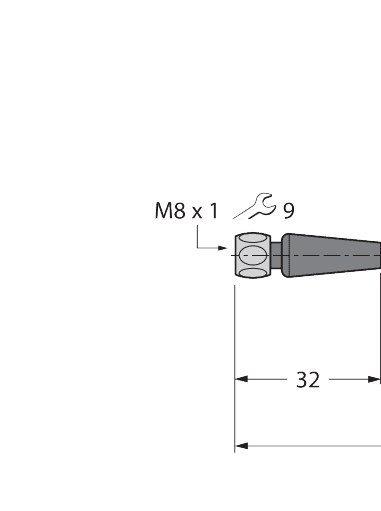

Connector A
Female, M8 x 1, Straight
Core cross-section (mm²)
0.34
Coupling nut/screw material A
Stainless Steel
Current (A)
4
Design
Connection Cable
Dimension unit
MMT
EAN/UPC code
4047101335675
Gross weight
425
Height
40
Length
210
Net weight
425
Number of pins
3
Plug body
Plastic
Voltage (V)
60
Volume
1.764
Volume unit
DMQ
Weight unit
GRM
Width
210
Key Features
Cable length (m)
20
Cable quality
TPE-O
