WSC-WKC5701-1.5M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

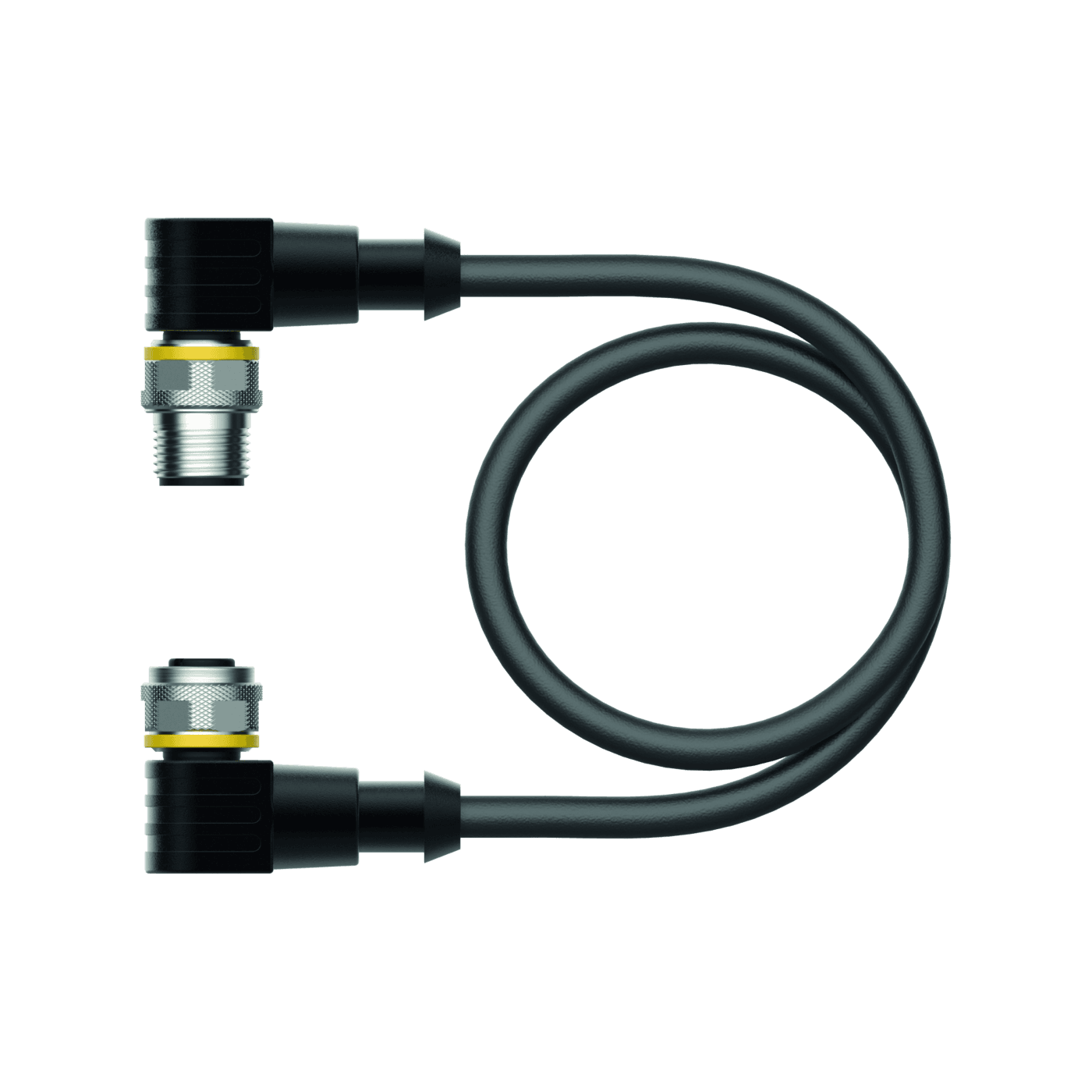

Bus Cable for CAN (DeviceNet, CANopen) PUR Cable Jacket, Thin
WSC-WKC5701-1.5M
Order ID no. 6933252
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
60
Ambient temperature min. (°C)
-25
Application
Data
Approvals
UL
Base unit
PCE
Cable color
Anthracite
Cable diameter (mm)
6.7
Cable length (m)
1.5
Cable quality
PUR
Connector A
Male, M12 x 1, Angled, A-coded
Connector B
Female, M12 x 1, Angled, A-coded
Core cross-section (mm²)
0.25
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047106167745
Gross weight
125
Height
3
Length
118
Net weight
125
Network protocol
CANopen, DeviceNet
Number of pins
5
Number of Pins
5
Plug body
Plastic
Voltage (V)
60
Volume
40.002
Volume unit
CMQ
Weight unit
GRM
Width
113
Key Features
Cable length (m)
1.5
Cable quality
PUR
In Stock
List Price
A$123.01
home
Turck-Shop
Connectivity
Cordsets
WSC-WKC5701-1.5M
Item Total
A$123.01
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
