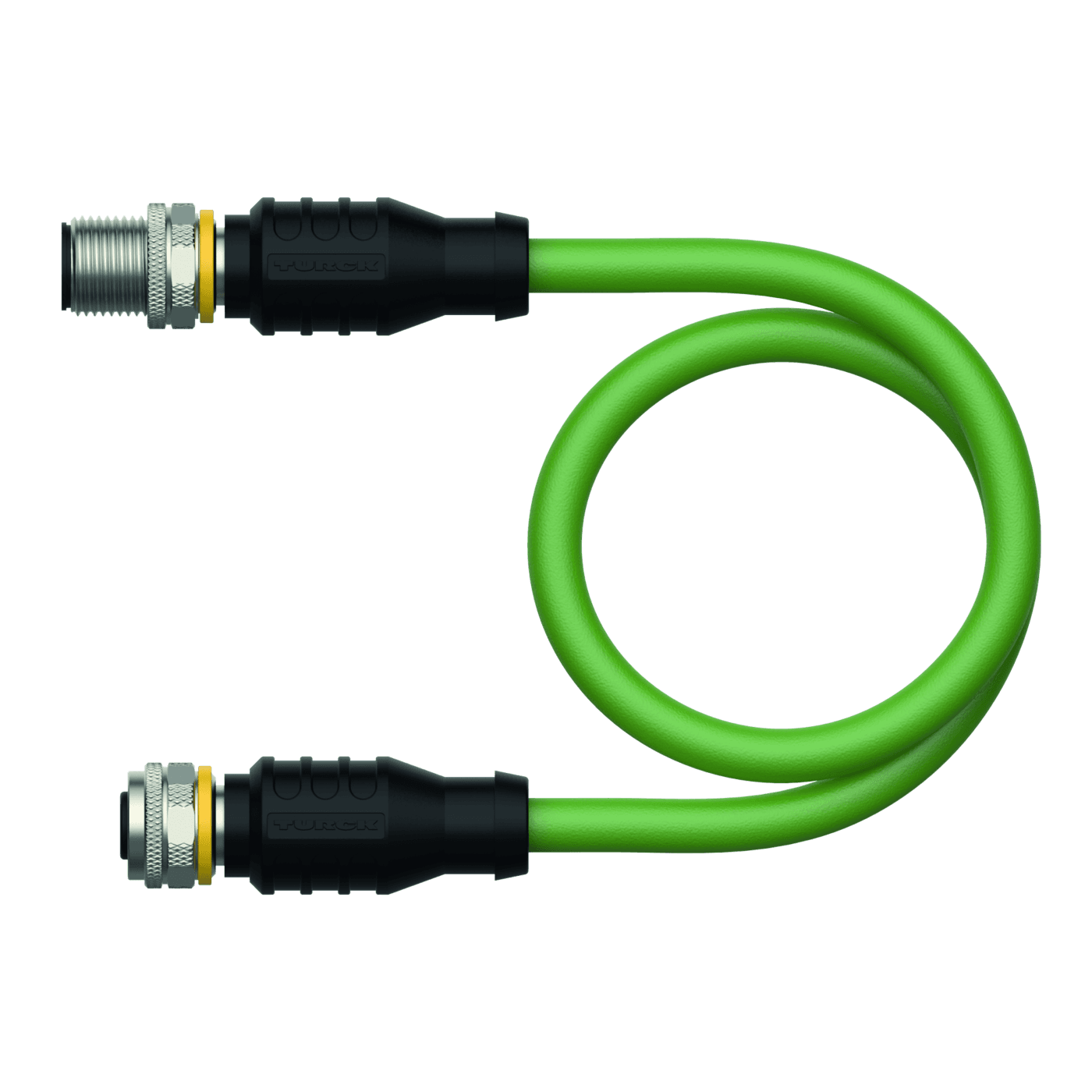

Industrial Ethernet Cable Connection Cable
RSSD-RKSD-4422-3M
Order ID no. 6635395
In Stock
List Price
A$133.50
home
Turck-Shop
Connectivity
Cordsets
RSSD-RKSD-4422-3M
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-30
Application
Data
Approvals
UL Listed
Base unit
PCE
Cable color
Green
Cable diameter (mm)
6.5
Cable length (m)
3
Cable quality
PUR
Connector A
Male, M12 x 1, Straight, D-coded
Connector B
Female, M12 x 1, Straight, D-coded
Core cross-section (mm²)
0.32
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047101593570
Gross weight
213
Height
25
Length
200
Net weight
213
Network protocol
Ethernet
Number of pins
4
Number of Pins
4
Plug body
Plastic
Voltage (V)
48
Volume
0.001
Volume unit
MTQ
Weight unit
GRM
Width
200
Key Features
Cable length (m)
3
Cable quality
PUR
Item Total
A$133.50
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
