RSSD-RSSD-4422-100M | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

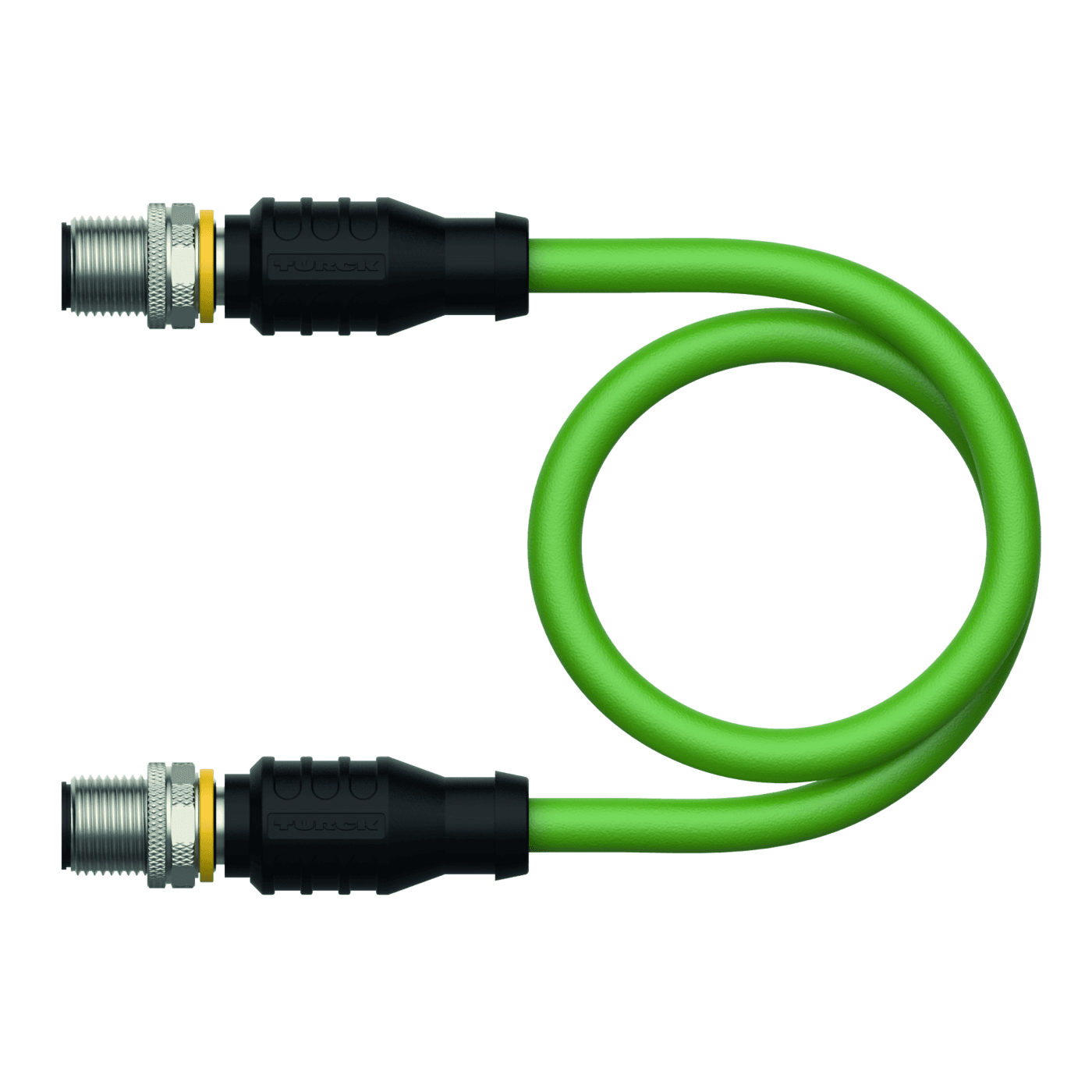

Industrial Ethernet Cable Extension Cable
RSSD-RSSD-4422-100M
Order ID no. 6635156
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-30
Application
Data
Approvals
UL Listed
Base unit
PCE
Cable color
Green
Cable diameter (mm)
6.5
Cable length (m)
100
Cable quality
PUR
Connector A
Male, M12 x 1, Straight, D-coded
Connector B
Male, M12 x 1, Straight, D-coded
Core cross-section (mm²)
0.32
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047101584400
Gross weight
5905
Height
110
Length
340
Net weight
5905
Network protocol
Ethernet
Number of pins
4
Number of Pins
4
Plug body
Plastic
Voltage (V)
30
Volume
12.716
Volume unit
DMQ
Weight unit
GRM
Width
340
home
Turck-Shop
Connectivity
Cordsets
RSSD-RSSD-4422-100M
Key Features
Cable length (m)
100
Cable quality
PUR
In Stock
List Price
A$1,592.29
Item Total
A$1,592.29
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
