RSC12.120T-15/TEL | TURCK - Your Global Automation Partner
arrow_back_ios
arrow_forward_ios

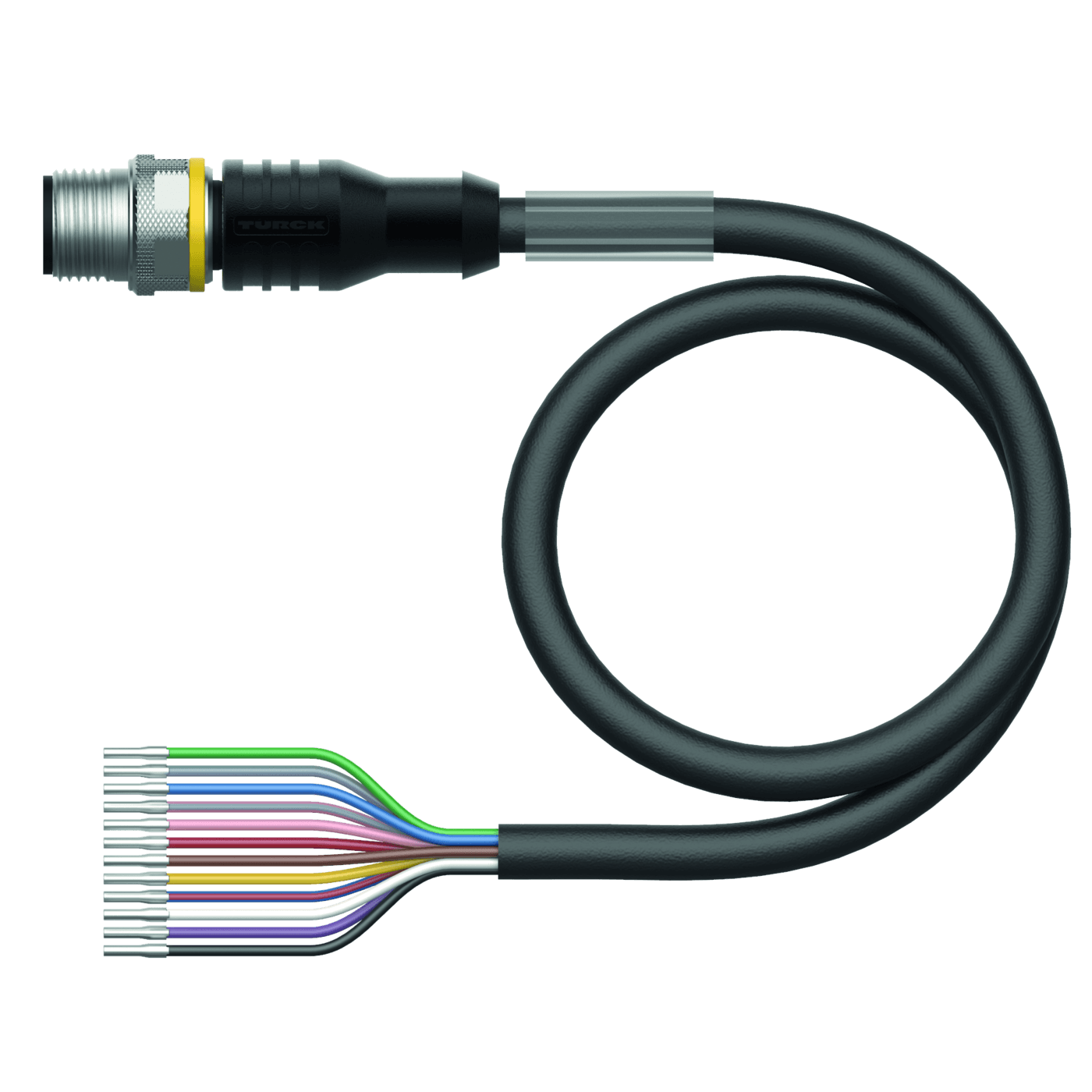

Actuator and Sensor Cable, PVC Connection Cable

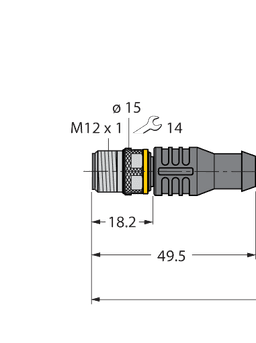

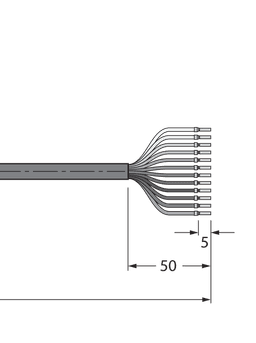

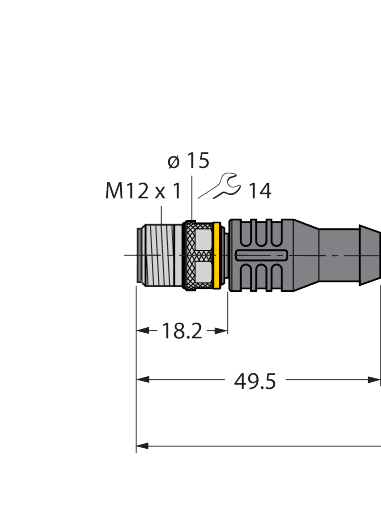

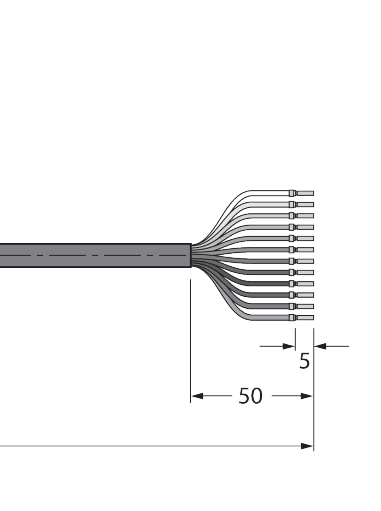

RSC12.120T-15/TEL
Order ID no. 6631526
home
Home
Loading...
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-5
Application
Signal
Approvals
cULus
Base unit
PCE
Cable color
Black
Cable diameter (mm)
5.9
Cable length (m)
15
Cable quality
PVC
Connector A
Male, M12 x 1, Straight, A-coded
Core cross-section (mm²)
0.14
Coupling nut/screw material A
Brass
Current (A)
1.5
Design
Connection Cable
Dimension unit
MMT
EAN/UPC code
4047101443950
Gross weight
687
Height
30
Length
200
Net weight
687
Number of pins
12
Plug body
Plastic
Voltage (V)
30
Volume
1200
Volume unit
CMQ
Weight unit
GRM
Width
200
home
Turck-Shop
Connectivity
Cordsets
RSC12.120T-15/TEL
Key Features
Cable length (m)
15
Cable quality
PVC
In Stock
List Price
A$199.35
Item Total
A$199.35
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
