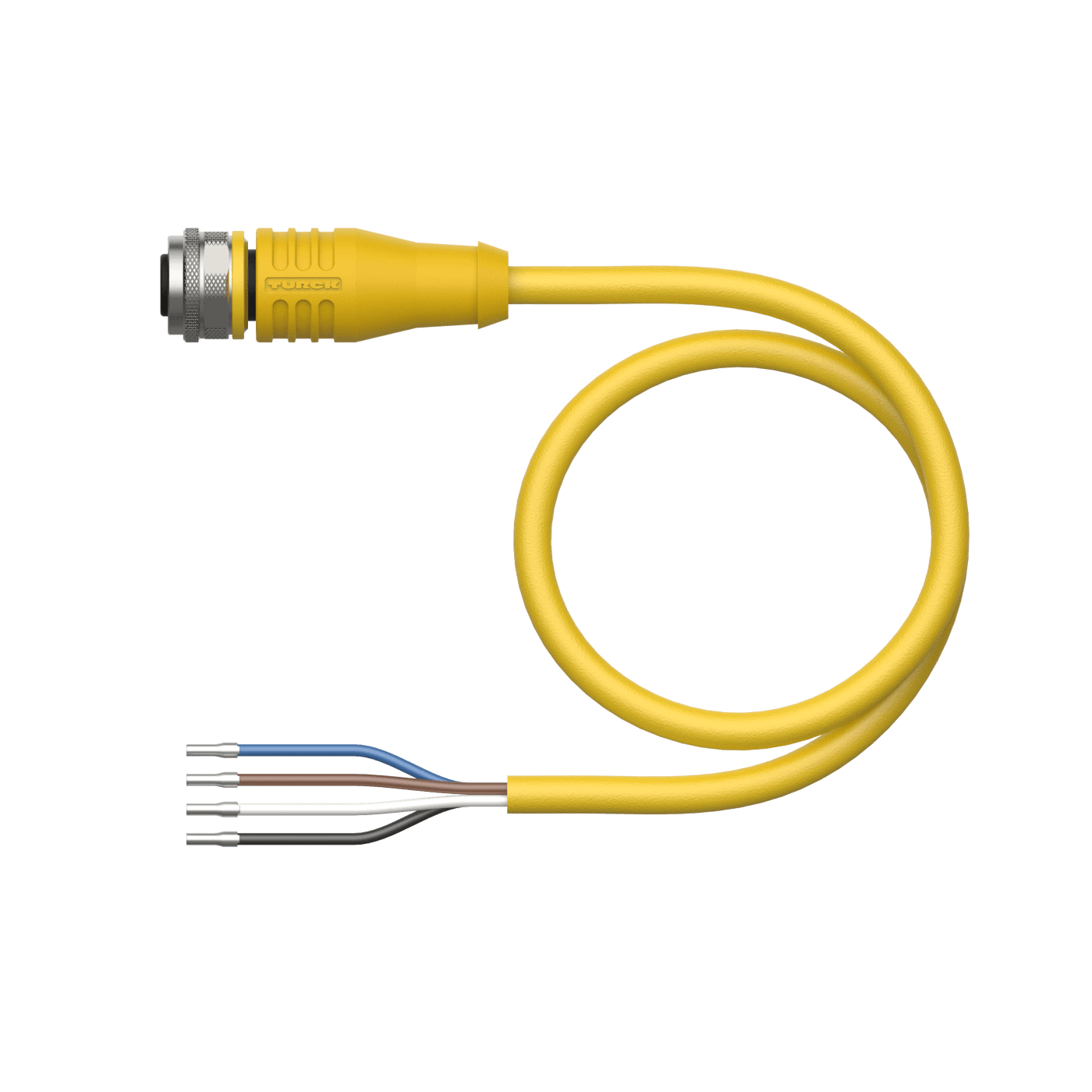

Actuator and Sensor Cable, PUR Connection Cable

RKS4.5T-10/TXY3013

Order ID no. 6631203

In Stock
List Price	A$121.82

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Application: Signal
Approvals: cULus
Base unit: PCE
Cable color: Yellow
Cable diameter (mm): 5.7
Cable length (m): 10
Cable quality: PUR
Connector A: Female, M12 x 1, Straight, A-coded
Core cross-section (mm²): 0.34
Coupling nut/screw material A: Brass
Current (A): 4
Design: Connection Cable
Dimension unit: MMT
EAN/UPC code: 4047101417616
Gross weight: 514
Height: 45
Length: 270
Net weight: 514
Number of pins: 5
Plug body: Plastic
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Voltage (V): 60
Volume: 3.037
Volume unit: DMQ
Weight unit: GRM
Width: 250
