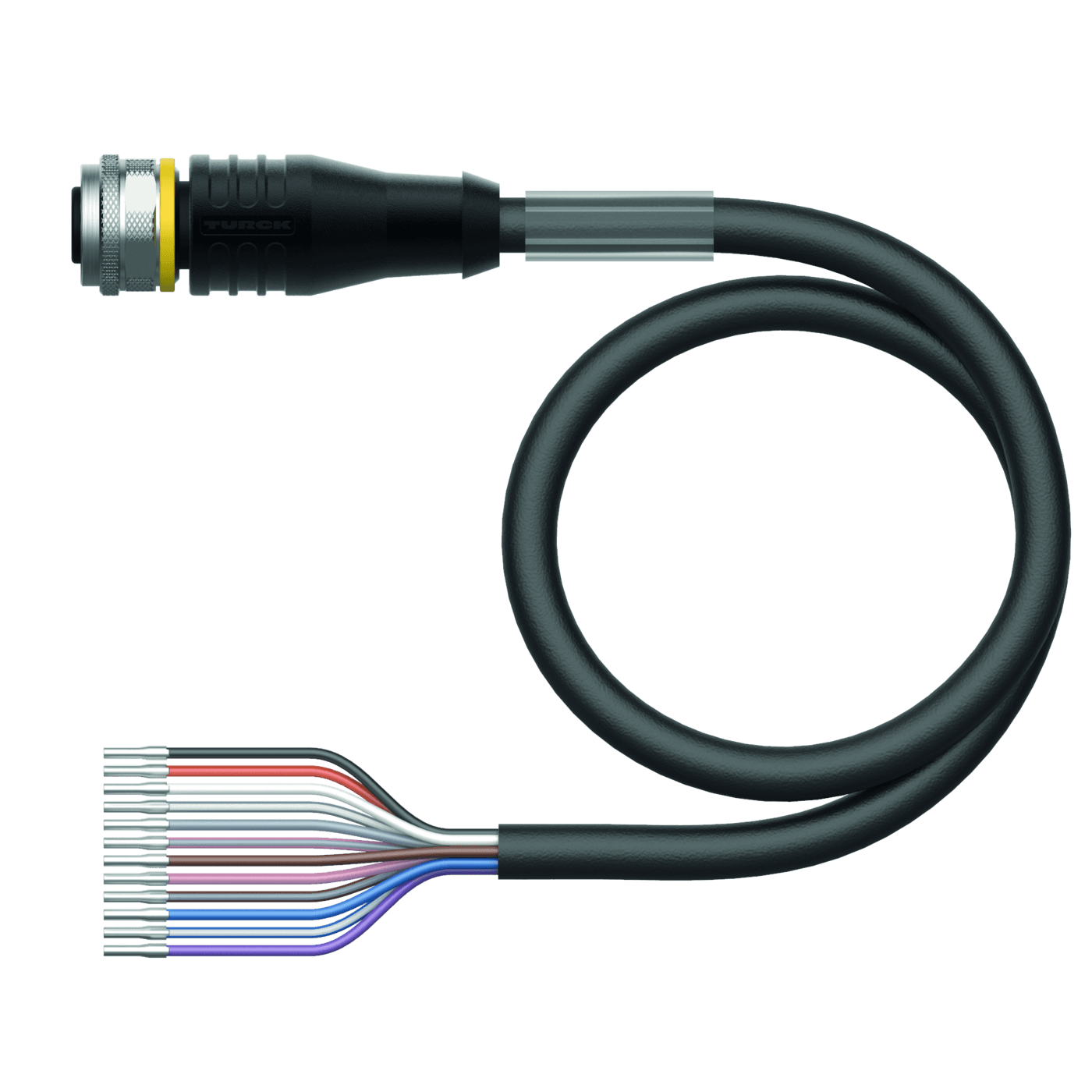

Actuator and Sensor Cable, PUR Connection Cable

RKS12T-20/TXL

Order ID no. 6631013

Ambient temperature max. (°C): 80
Ambient temperature min. (°C): -25
Application: Signal
Approvals: cULus
Base unit: PCE
Cable color: Black
Cable diameter (mm): 6.4
Cable length (m): 20
Cable quality: PUR

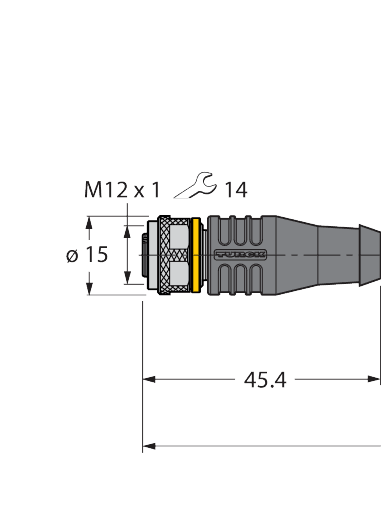

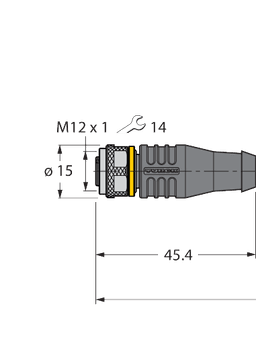

Connector A: Female, M12 x 1, Straight, A-coded
Core cross-section (mm²): 0.14
Coupling nut/screw material A: Brass
Current (A): 1.5
Design: Connection Cable
Dimension unit: MMT
EAN/UPC code: 4047101408942
Gross weight: 1115
Height: 50
Length: 200
Net weight: 1115
Number of pins: 12
Plug body: Plastic
Special features: Shielded, Shielding on coupling nut, Suitable for drag chain use
Voltage (V): 30
Volume: 0.002
Volume unit: MTQ
Weight unit: GRM
Width: 200

In Stock
List Price	A$277.73
