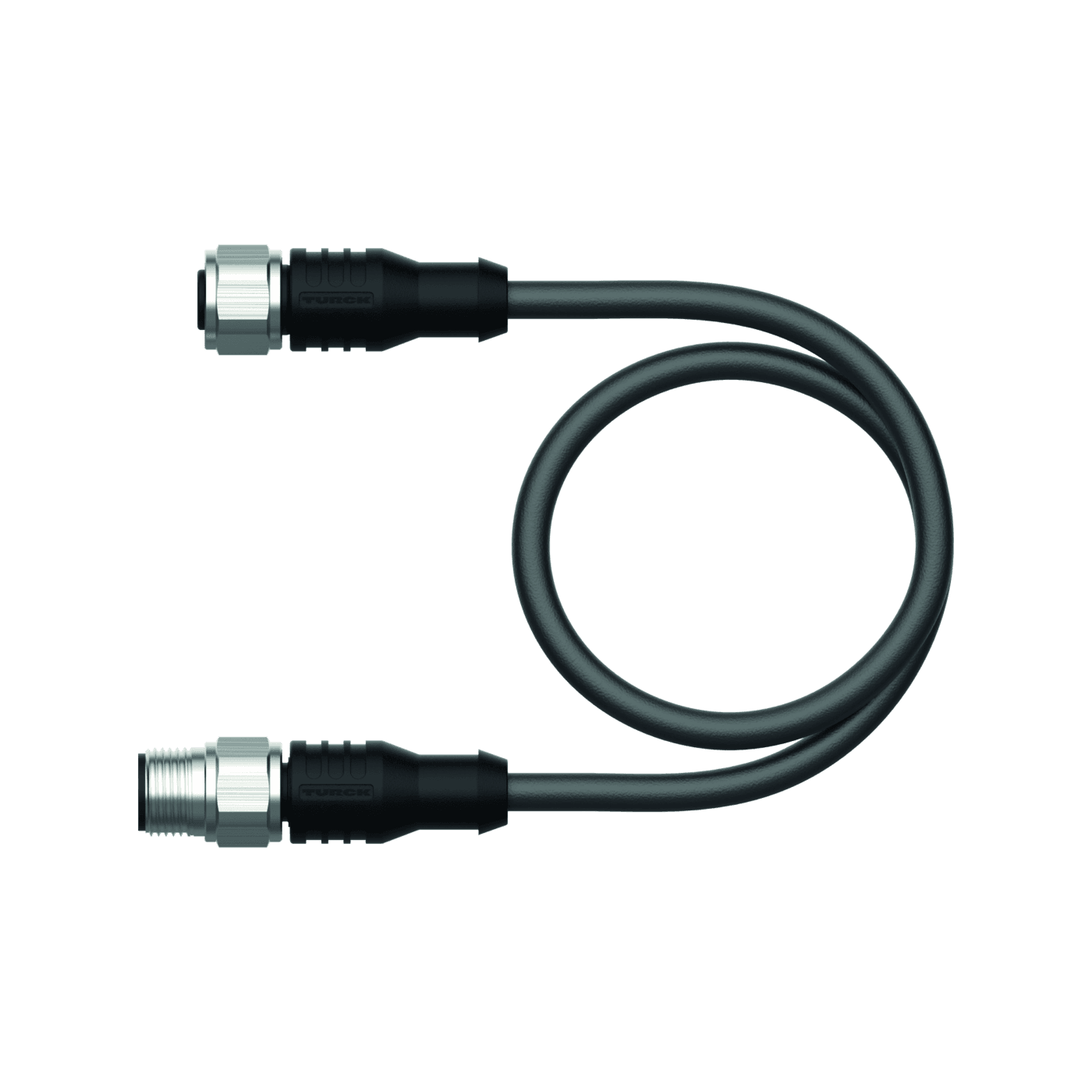

Actuator and Sensor Cable, PUR Extension Cable
RKCV4.5T-25-RSCV4.5T/TXL
Order ID no. 6630863
In Stock
home
Turck-Shop
Connectivity
Cordsets
RKCV4.5T-25-RSCV4.5T/TXL
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-25
Application
Signal
Approvals
cULus
Base unit
PCE
Cable color
Black
Cable diameter (mm)
4.8
Cable length (m)
25
Cable quality
PUR
Connector A
Female, M12 x 1, Straight, A-coded
Connector B
Male, M12 x 1, Straight, A-coded
Core cross-section (mm²)
0.34
Coupling nut/screw material A
Stainless Steel
Coupling nut/screw material B
Stainless Steel
Current (A)
4
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047101393187
Gross weight
870
Height
4
Length
200
Net weight
870
Number of pins
5
Number of Pins
5
Plug body
Plastic
Special features
Suitable for drag chain use
Voltage (V)
60
Volume
160
Volume unit
CMQ
Weight unit
GRM
Width
200
Key Features
Cable length (m)
25
Cable quality
PUR
List Price
A$163.29
Item Total
A$163.29
