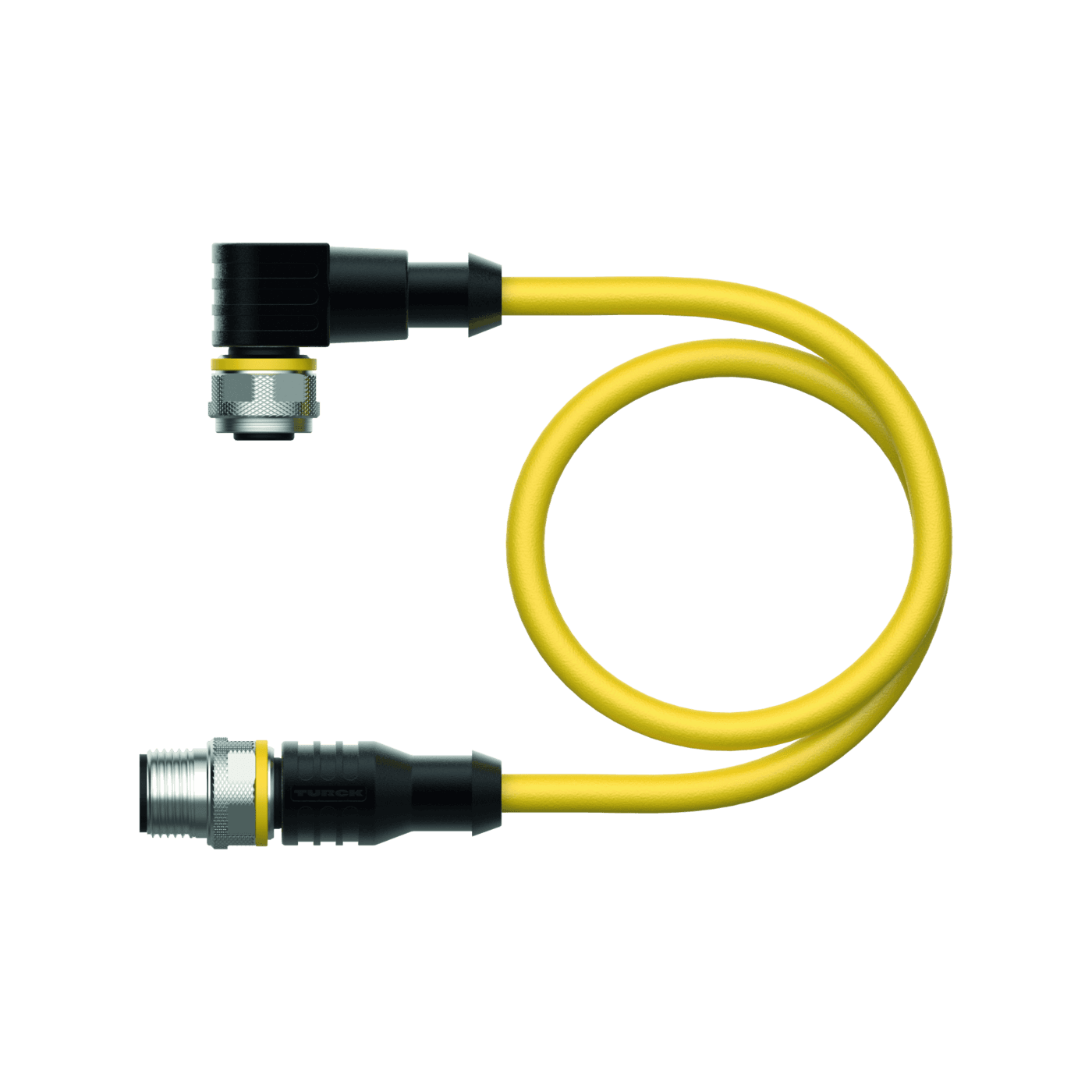

Actuator and Sensor Cable, PUR Extension Cable
WKC5T-1-RSC5T/TXY
Order ID no. 6629788
In Stock
List Price
A$62.76
home
Turck-Shop
Connectivity
Cordsets
WKC5T-1-RSC5T/TXY
Technical Data
Downloads
Ambient temperature max. (°C)
80
Ambient temperature min. (°C)
-25
Application
Signal
Approvals
cULus
Base unit
PCE
Cable color
Yellow
Cable diameter (mm)
4.8
Cable length (m)
1
Cable quality
PUR
Connector A
Female, M12 x 1, Angled, A-coded
Connector B
Male, M12 x 1, Straight, A-coded
Core cross-section (mm²)
0.34
Coupling nut/screw material A
Brass
Coupling nut/screw material B
Brass
Current (A)
4
Design
Extension Cable
Dimension unit
MMT
EAN/UPC code
4047101360462
Gross weight
1
Height
0
Length
0
Net weight
1
Number of pins
4+PE
Number of Pins
4+PE
Plug body
Plastic
Special features
Suitable for drag chain use
Voltage (V)
60
Volume
0
Weight unit
GRM
Width
0
Key Features
Cable length (m)
1
Cable quality
PUR
Item Total
A$62.76
Quantity
−
+
add_shopping_cart
Add to Cart
Contact Support
